STD-1118 Inserta Tee® Fittings for Duraslot® Application Detail

Filename:
STD-1118 Inserta Tee® Fittings for Duraslot® Application Detail.dwg

STD-1118 Inserta Tee® Fittings for Duraslot® Application Detail

This document explains the Inserta Tee for Duraslot Application. A detail of the Inserta Tee in the Duraslot with QR scan for installation provided.

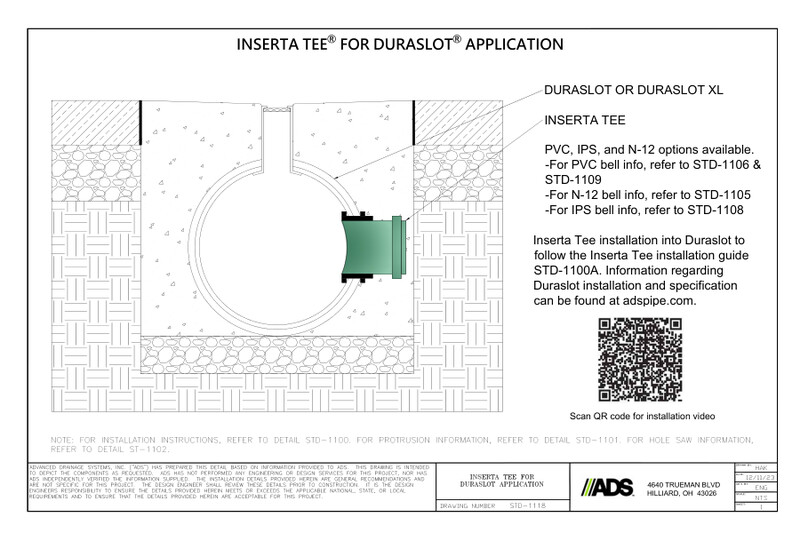

The figure shows the Inserta Tee attached to the Duraslot or Duraslot XL. Notes state that PVC, IPS, and N-12 options available. For PVC bell info, refer to STD-1106 & STD-1109. For N-12 bell info, refer to STD-1105. For IPS bell info, refer to STD-1108

Inserta Tee installation into Duraslot to follow the Inserta Tee installation guide

STD-1100A. A QR code is provided for installation video.
