This document is the HP Storm Fittings Manual. Tables with pipe size and diagrams of various fittings with descriptions included.

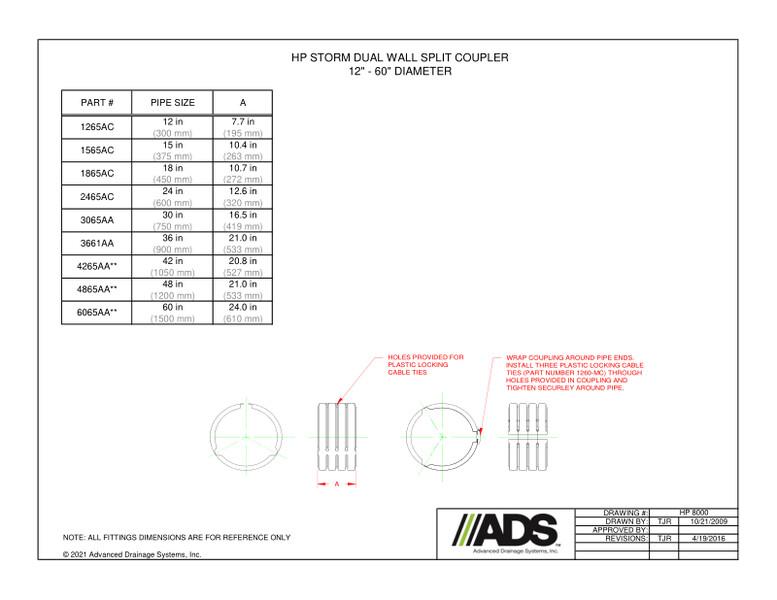

The information for the HP Storm Dual Wall Split Coupler 12”-60” diameter is shown with a chart that lists the values for Part number, pipe size and A. The coupler diagrams show the holes provided for plastic locking cable ties and wrap coupling around pipe ends. Install three plastic locking cable ties through holes provided in coupling and tighten securely around pipe.

The HP Storm Dual Wall Bell/Bell Couplers 12”-24” diameter (polypropylene) is shown with a chart that lists the values for Part number, pipe size, A/B/C and Joint. A diagram is shown that requires gasket to provide specified joint performance.

The HP Storm Dual Wall Marmac Couplers 12”-60” diameters is shown with a chart that lists the values for Part number, pipe size, L and W. A diagram is shown with fastening straps.

The HP Storm Dual Wall Fabricated 11.25 degree bends 12”-60” diameter (plain end) is shown with a chart that lists the values for Part number, pipe size, A and Joint. A diagram is shown.

The HP Storm Dual Wall Fabricated 11.25 degree bends 12”-24” diameter (Bell/Bell) is shown with a chart that lists the values for Part number, pipe size, A and Joint. A diagram is shown where WT includes 2 gaskets.

The HP Storm Dual Wall Fabricated 11.25 degree bends 30”-60” diameter (IB Bell/IB Spigot) is shown with a chart that lists the values for Part number, pipe size, A, B and Joint. A diagram is shown where WT includes 2 gaskets.

The HP Storm Dual Wall Fabricated 22.5 degree bends 12”-60” diameter (Plain End) is shown with a chart that lists the values for Part number, pipe size, A and Joint. A diagram is shown.

The HP Storm Dual Wall Fabricated 22.5 degree bends 12”-24” diameter (Bell/Bell), HP Storm Dual Wall Fabricated 22.5 degree bends 30”-60” diameter (IB Bell/IB Spigot), HP Storm Dual Wall Fabricated 30 degree bends 12”-60” diameter (Plain End), HP Storm Dual Wall Fabricated 30 degree bends 12”-24” diameter (Bell/Bell), HP Storm Dual Wall Fabricated 30 degree bends 30”-60” diameter (IB Bell/IB Spigot), HP Storm Dual Wall Fabricated 45 degree bends 12”-60” diameter (Plain End), HP Storm Dual Wall Fabricated Sweeping 45 degree bends 12”-60” diameter (Plain End).

More products with charts and sizes shown.
