This document is the HDPE Singlewall Miscellaneous Fittings Manual. Downspout adapters with chart and detail shown.

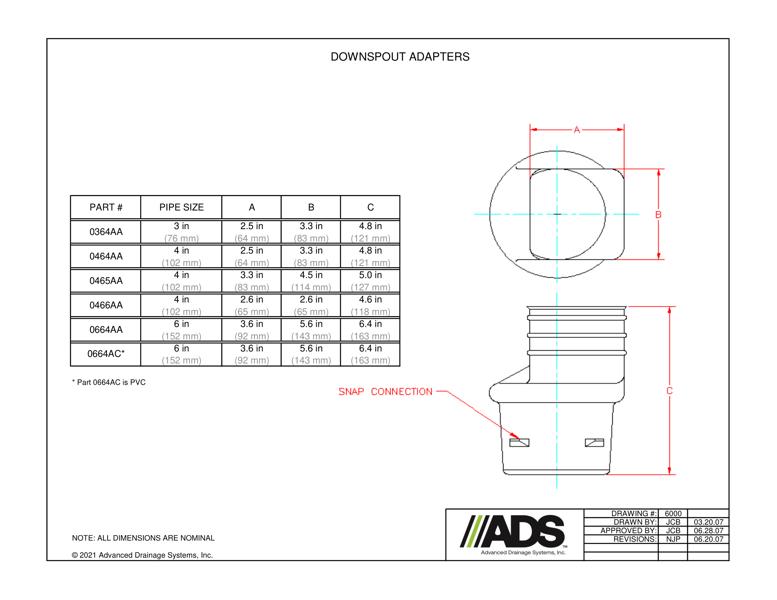

The details show the top down and side views of adapter with snap connection location.

The chart shows part number, pipe size and A/B/C dimensions.

A notes states that dimensions are nominal.
