3" - 8" Wye (HDPE Single Wall Fittings)

This document is the 3” – 8” Wye (HDPE Single Wall Fittings). A detail with table provided.

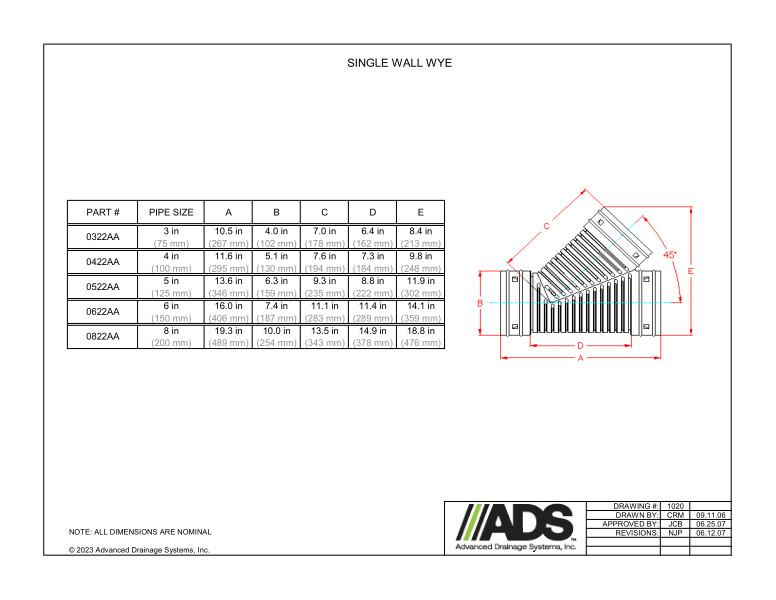

The Single Wall Wye detail shows the A/B/C/D/E dimensions with 45 degree arc.

A table with part number, pipe size and A/B/C/D/E dimensions provided.

All dimensions are nominal.
