This document is the 4”-10” Diameter Dual Wall Snap End Cap (HDPE End Caps and Plugs). A diagram and table provided.

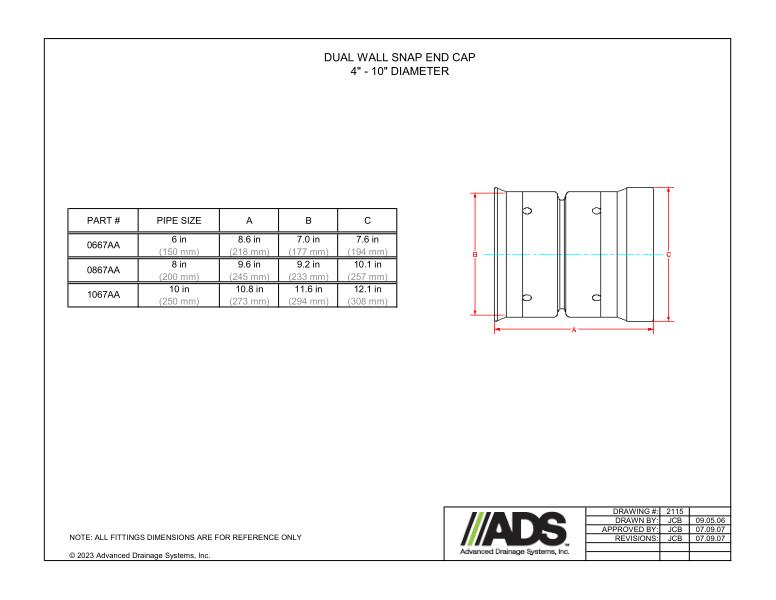

The illustrations of the end cap shows the A/B/C dimensions.

A table with part number, pipe size and A/B/C dimensions is provided.

All fittings dimensions are for reference only.
