StormTech Product Sheet

The StormTech Stormwater Chamber System is designed to meet the most stringent industry performance standards for superior structural integrity while providing designers with a cost-effective method to save valuable land.

The StormTech system is designed primarily to be used under parking lots, thus maximizing land usage for private

(commercial) and public applications.

StormTech chambers can also be used in conjunction with Green Infrastructure, thus enhancing the performance and extending the service life of these practices.

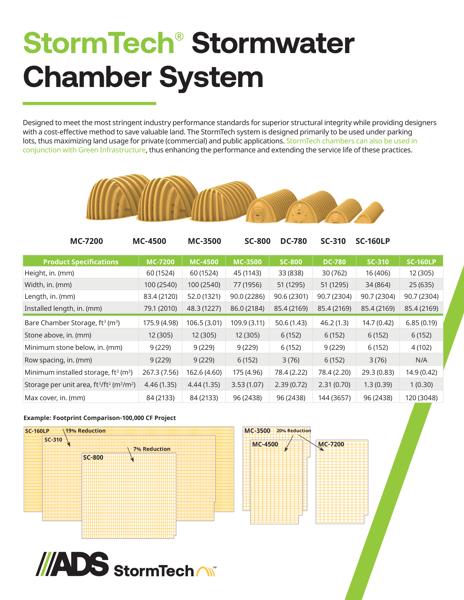

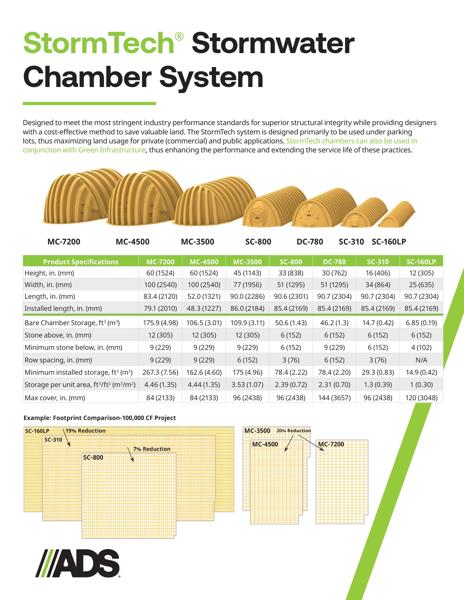

Stormwater Chamber System product specifications include all the varying product size dimensions and spacing information for each model. A helpful footprint comparison for a 100,000 CF Project shows the reduction of area needed with each chamber model.

StormTech Isolator Row Plus is an important component of any Stormwater Pollution Prevention Plan with inspection and maintenance. The StormTech Isolator Row Plus is a technique to inexpensively enhance Total Suspended Solids (TSS) and Total Phosphorus (TP) removal with easy access for inspection and maintenance.

The Isolator Row Plus is a row of StormTech chambers that is surrounded with filter fabric and connected to a closely located manhole for easy access. The fabric-wrapped chambers provide for sediment settling and filtration as stormwater rises in the Isolator Row Plus and passes through the filter fabric. The open bottom chambers allow stormwater to flow vertically out of the chambers. Sediments are captured in the Isolator Row Plus protecting the adjacent stone and chambers storage areas from sediment accumulation.

The Isolator Row Plus may be part of a treatment train system. The treatment train design and pretreatment device selection by the design engineer is often driven by regulatory requirements.

Whether pretreatment is used or not, StormTech recommends using the Isolator Row Plus to minimize maintenance requirements and maintenance costs.

StormTech Design Tool helps with initial layouts and reports provide a visual understanding of various options and is the first step to choosing the design direction and evaluating potential cost. Generate quick layouts, import site plans & maps, customize layouts, save/manage/revise, multi-bed system designs.

The StormTech Design Tool web address is:

Or call at 800-821-6710.
