6" x 4" - 12" x 10" Fabricated Reducing Cross Tees (HDPE Dual Wall Fabricated Tees Fittings)

Filename:
6" x 4" - 12" x 10" Fabricated Reducing Cross Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf

Download Document (pdf) View in Browser
6" x 4" - 12" x 10" Fabricated Reducing Cross Tees (HDPE Dual Wall Fabricated Tees Fittings)

This document is the 6" x 4" - 12" x 10" Fabricated Reducing Cross Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.

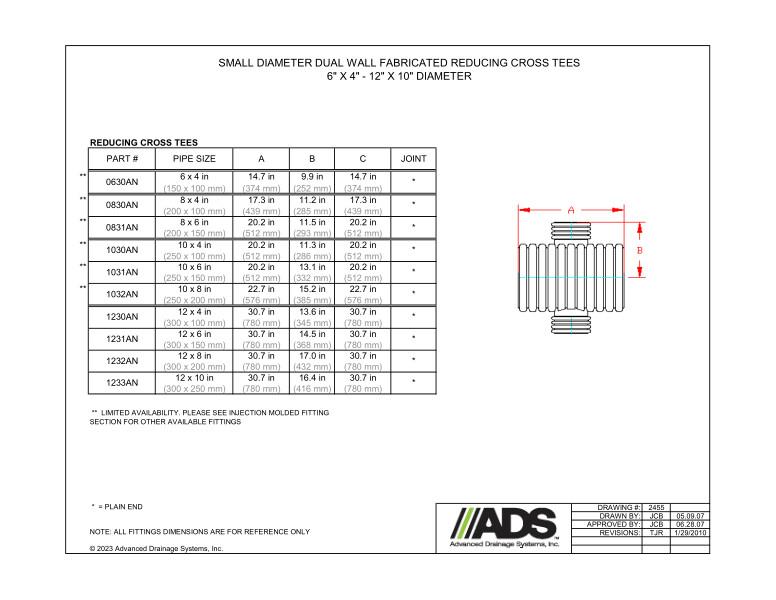

The small diameter dual wall Fabricated Reducing Cross Tees 6" x 4" - 12" x 10" diameter is shown in a diagram that shows A/B dimensions.

A table with the information for part number, pipe size and A/B/C/Joint sizes is provided.

All fittings dimensions are for reference only.

6" x 4" - 12" x 10" Fabricated Reducing Cross Tees (HDPE Dual Wall Fabricated Tees Fittings)
