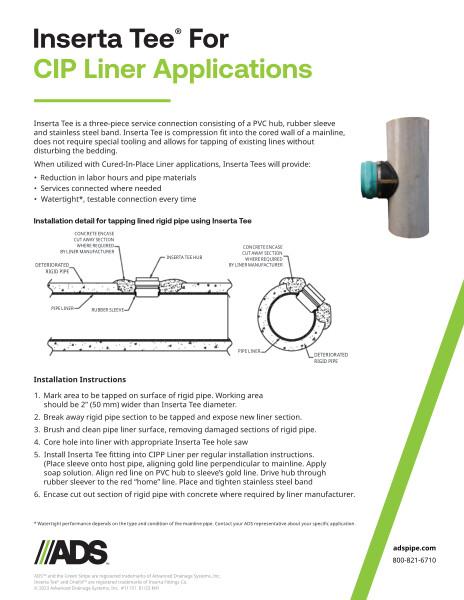

This document is the Inserta Tee for CIP Liner Applications. The installation detail for tapping lined rigid pipe using Inserta Tee and instructions provided.
The Inserta Tee is a 3 piece service connection consisting of a PVC hub, rubber sleeve and stainless steel band. Inserta Tee is compression fit into the cored wall of the mainline and allows for tapping of existing lines without disturbing the bedding.
Inserta Tee will provide reduction in labor hours and pipe materials, services connected where needed and watertight testable connection.
The installation detail for tapping lined rigid pipe using Inserta Tee figure shows the concrete encase cut away section, deteriorated rigid pipe, pipe liner, rubber sleeve and Inserta Tee hub. The 2nd figure is a detail of the concrete encase cut away section, deteriorated rigid pipe and pipe liner.
Installation instructions are to mark area to be tapped on surface of rigid pipe, break away rigid pipe section to expose new liner section, brush and clean pipe liner surface, core hole into liner with Inserta Tee saw, install Inserta Tee fitting into CIPP liner and encase cut out section of rigid pipe with concrete.
