42" & 48"  StormTech Dual Wall Fabricated Soil Tight Single Reducing Manifolds (StormTech Dual Wall HDPE Fittings)

This document is the 42" - 48" StormTech Dual Wall Fabricated Soil Tight Single Reducing Manifolds (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

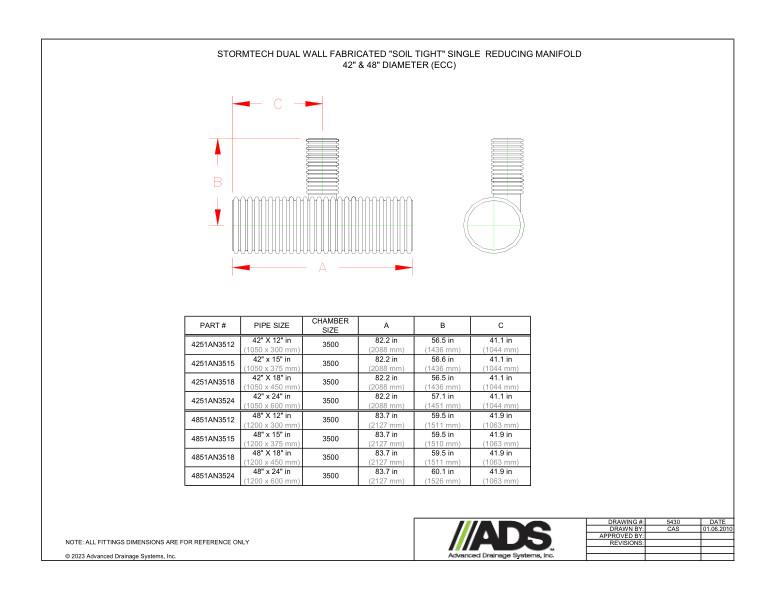

StormTech Dual Wall Fabricated “Soil Tight” Single Reducing Manifold 42" - 48" diameter (ECC) shows the side view and inside view manifold diagrams with A/B/C dimensions.

The table lists the part number, pipe size, chamber size and A/B/C dimension values.

All fittings dimensions are for reference only.
