208 Connection Drop Manhole 12-24in SaniTite HP Detail

Filename:
208 Connection Drop Manhole 12-24in SaniTite HP Detail.dwg

208 Connection Drop Manhole 12-24in SaniTite HP Detail

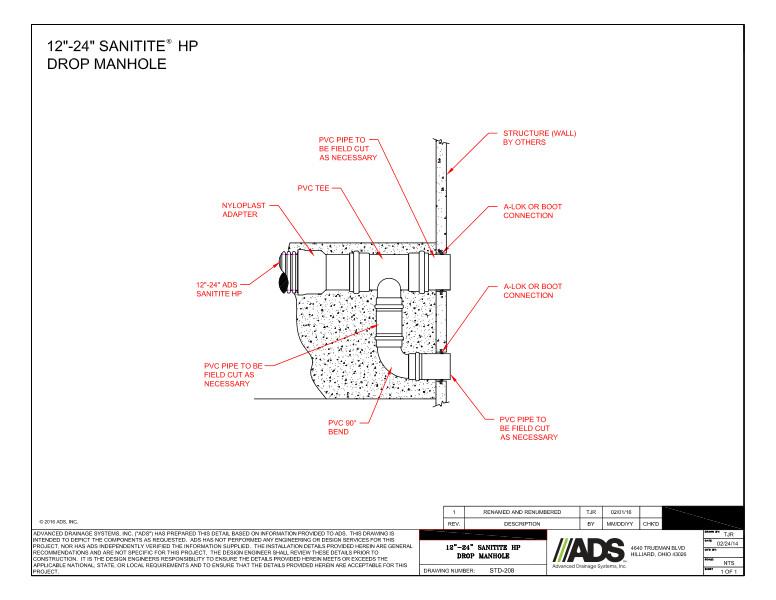

This document is the 208 Connection Drop Manhole 12-24in SaniTite HP Detail. A diagram with unit descriptions provided.

The manhole diagram shows the PVC pipe to be field cut, PVC Tee. Nyloplast adapter, 12-24in ADS SaniTite HP, structure wall, A-LOK or boot connection and PVC 90 degree bend.
