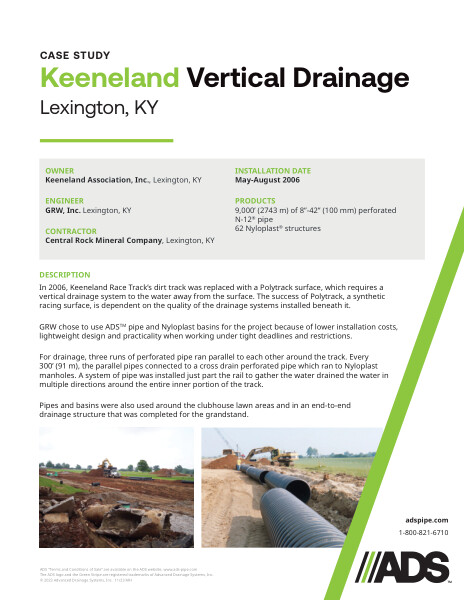

Keeneland Vertical Drainage Case Study

This document is the Keeneland Vertical Drainage Case Study. In Kentucky, the Keeneland Race track dirt track was replaced with a polytrack that required vertical drainage.

In 2006, Keeneland Race Track’s dirt track was replaced with a Polytrack surface, which requires a vertical drainage system to drain the water away from the surface. The success of Polytrack, a synthetic racing surface, is dependent on the quality of the drainage systems installed beneath it.

GRW chose to use ADSTM pipe and Nyloplast basins for the project because of lower installation costs, lightweight design and practicality when working under tight deadlines and restrictions.

For drainage, three runs of perforated pipe ran parallel to each other around the track. Every 300’ (91 m), the parallel pipes connected to a cross drain perforated pipe which ran to Nyloplast manholes. A system of pipe was installed just part the rail to gather the water drained the water in multiple directions around the entire inner portion of the track.

Pipes and basins were also used around the clubhouse lawn areas and in an end-to-end drainage structure that was completed for the grandstand.

The installation was done in May - August 2006 using 9,000’ (2743 m) of 8”-42” (100 mm) perforated N-12® pipe and 62 Nyloplast® structures.

Photographs of the project are included.
