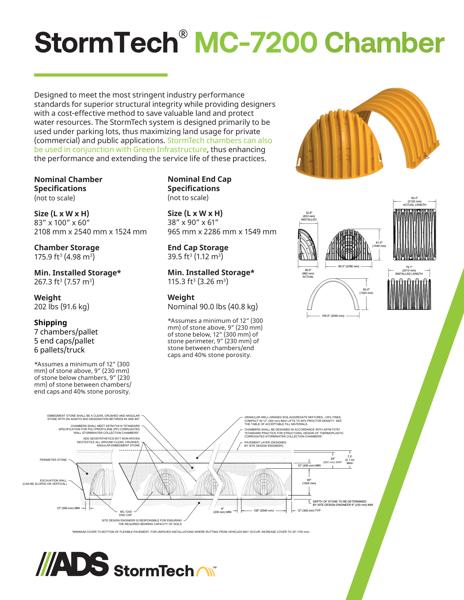

MC-7200 StormTech Chamber Submittal Package

The MC-700 StormTech chamber is designed to meet the most stringent industry performance standards for superior structural integrity while providing designers with a cost-effective method to save valuable land and protect water resources.

The StormTech system is designed primarily to be used under parking lots, thus maximizing land usage for private (commercial) and public applications. StormTech chambers can also be used in conjunction with Green Infrastructure, thus enhancing the performance and extending the service life of these practices.

StormTech MC-7200 specifications of storage volume, amount of stone, volume excavation and acceptable fill materials are explained.

MC-7200 technical specifications list size, storage, weight and part numbers in detail.

The MC-7200 Isolator Row Plus detail includes diagrams, inspection/maintenance steps and notes.

The O&M Manual introduces the Isolator Row Plus as an important component of any Stormwater Pollution Prevention Plan. The StormTech Isolator Row Plus is a technique to inexpensively enhance Total Suspended Solids (TSS) and Total Phosphorus (TP) removal with easy access for inspection and maintenance.

The Isolator Row Plus is a row of StormTech chambers, that is surrounded with filter fabric and connected to a closely located manhole for easy access. The fabric-wrapped chambers provide for sediment settling and filtration as stormwater rises in the Isolator Row Plus and passes through the filter fabric. The open bottom chambers and perforated sidewalls allow stormwater to flow both vertically and horizontally out of the chambers. Sediments are captured in the Isolator Row Plus protecting the adjacent stone and chambers storage areas from sediment accumulation.

Inspection and maintenance details are provided with step by step instructions.

The MC-7200 StormTech chamber installation guide shows the requirements for system installation using construction photographs and diagrams.

Also described are the ADS Geosynthetics 6.0 oz (0601T) nonwoven geotextile and the ADS Plus 125/175 woven geotextile for use with the StormTech Isolator Row Plus system.
