3" Internal Snap Wye (HDPE Single Wall Fittings)

Filename:
3" Internal Snap Wye (HDPE Single Wall Fittings).pdf

Download Document (pdf) View in Browser
3" Internal Snap Wye (HDPE Single Wall Fittings)

This document is the 3” Internal Snap Wye (HDPE Single Wall Fittings). A detail with table provided.

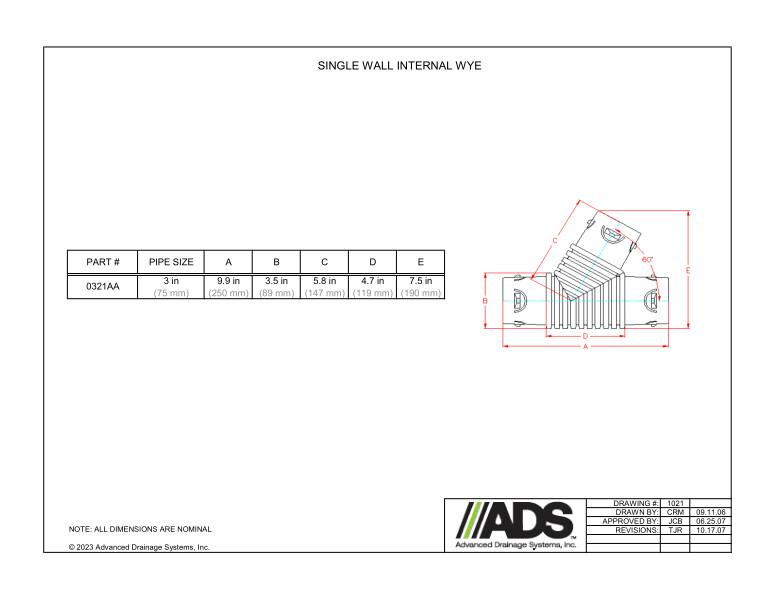

The Single Wall Internal Wye detail shows the A/B/C/D/E dimensions with 60 degree arc.

A table with part number, pipe size and A/B/C/D/E dimensions provided.

All dimensions are nominal.
