MC-7200 6" (150 mm) StormTech Inspection Port Detail

Filename:
MC-7200 6" (150 mm) StormTech Inspection Port Detail.dwg

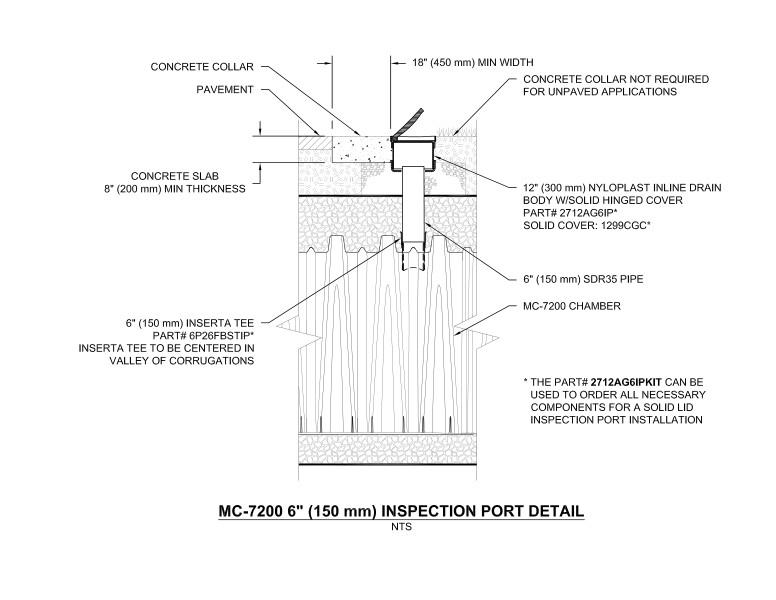

This document details the MC-7200 6" StormTech Inspection Port. A diagram showing the concrete collar, concrete slab with minimum thickness size, Nyloplast inline drain body with part number, SDR35 pipe, Inserta Tee placement and part number in relation to the placement of the MC-7200 Chamber.
