36" - 60" Fabricated Water Tight Gasket-Gasket 90 Degree Manifold Bends (HDPE Dual Wall Fabricated Manifolds Fittings)
Filename:
36" - 60" Fabricated Water Tight Gasket-Gasket 90 Degree Manifold Bends (HDPE Dual Wall Fabricated Manifolds Fittings).pdf
This document is the 36" - 60" Fabricated Water Tight Gasket-Gasket 90 Degree Manifold Bends (HDPE Dual Wall Fabricated Manifolds Fittings). A bend diagram with table provided.

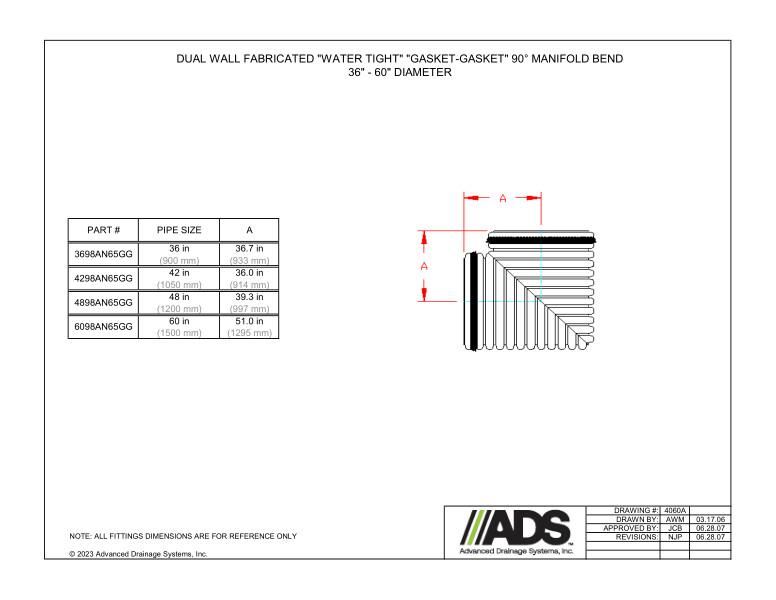

The dual wall fabricated “Water Tight” “Gasket-Gasket” Manifold Bend 36" - 60" diameter is shown in a diagram that shows A dimensions.
A table with the information for part number, pipe size and A sizes is provided.
All fittings dimensions are for reference only.
