This document is the 205D 12-30 SaniTite HP Booted (Cored or Cast Hole) Structure Connection with Sleeve or PVC Adapter Detail. Diagrams and charts provided.

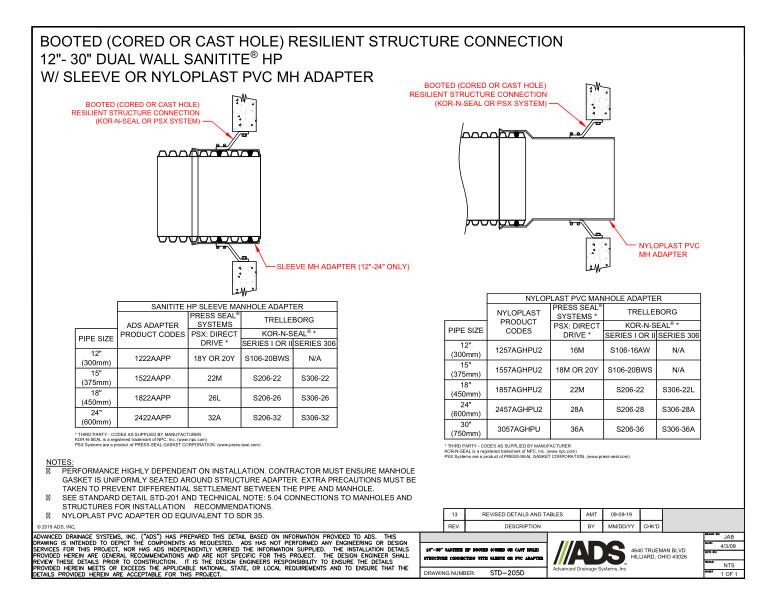

The diagram shows the Booted (Cored or Cast Hole) Resilient Structure Connection (KOR-N-SEAL or PSX System) and sleeve MH adapter.

A second diagram shows the Booted (Cored or Cast Hole) Resilient Structure Connection (KOR-N-SEAL or PSX System) and Nyloplast PVC MH adapter.

A chart provides values for the SaniTite HP Sleeve Manhole Adapter for pipe size, ADS Adapter product codes, Press Seal systems/ PSX: Direct Drive and the Trelleborg, KOR-N-SEAL values for Series I or II and Series 306.

A second chart provides values for the Nyloplast PVC MH adapter for pipe size, Nyloplast Adapter product codes, Press Seal systems/ PSX: Direct Drive and the Trelleborg, KOR-N-SEAL values for Series I or II and Series 306.

Notes state that performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter. Take precautions to prevent differential settlement between the pipe and manhole.
