USGA Perimeter Drain Green Profile Alternate (AdvanEDGE) Detail

Filename:
USGA Perimeter Drain Green Profile Alternate (AdvanEDGE) Detail.pdf

USGA Perimeter Drain Green Profile Alternate (AdvanEDGE) Detail

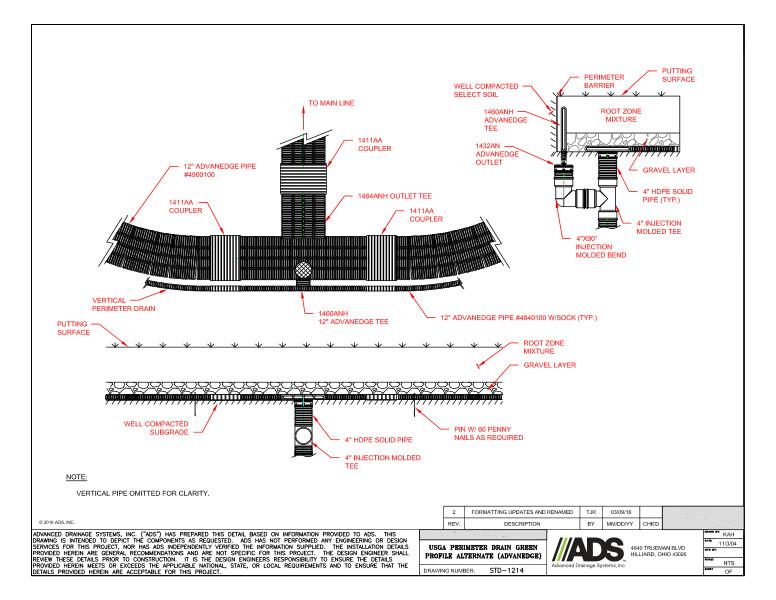

This document is the USGA Perimeter Drain Green Profile Alternate (AdvanEDGE) Detail. Diagrams with descriptions and a note provided.

The USGA Perimeter Drain Green diagram shows the coupler, direction to main line, 12” AdvenEdge pipe, vertical perimeter drain, outlet Tee, 12” AdvenEdge Tee and outlet Tee.

The putting surface diagrams shows the putting surface, root zone mixture, gravel layer, perimeter barrier, AdvenEdge Tee, well compacted select soil, AdvenEdge outlet, 4” HDPE solid pipe, 4” injection molded Tee and injection molded bend.

The 3rd diagram shows the putting surface, root zone mixture, gravel layer, well compacted subgrade, 4” HDPE solid pipe, 4” injection molded Tee and Pin W/60 penny nails as required.

A note clarifies that the vertical pipe omitted for clarity.
