4" - 24" Fabricated Cross Tees (HDPE Dual Wall Fabricated Tees Fittings)

Filename:
4" - 24" Fabricated Cross Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf

Download Document (pdf) View in Browser
4" - 24" Fabricated Cross Tees (HDPE Dual Wall Fabricated Tees Fittings)

This document is the 4" x 24" Fabricated Cross Tees (HDPE Dual Wall Fabricated Tees Fittings). A diagram with table provided.

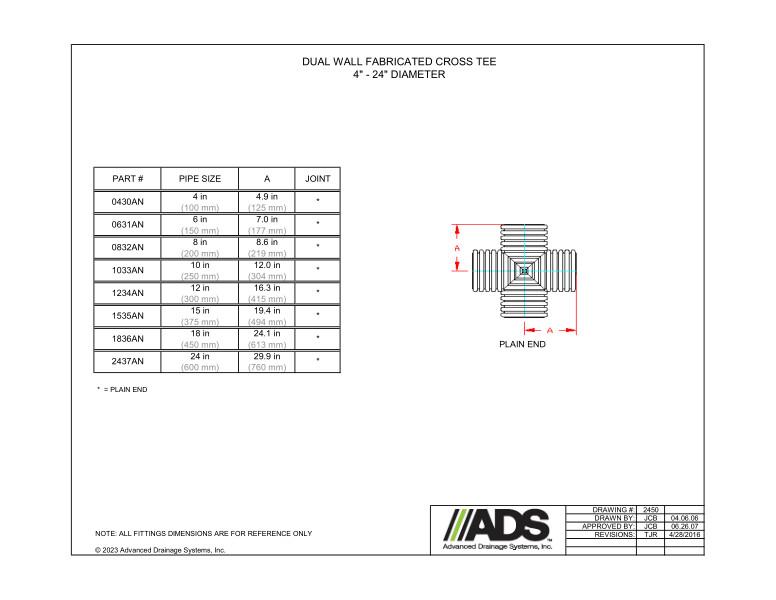

The dual wall Fabricated Reducing Cross Tees 4" x 24" diameter is shown in a diagram that shows A dimensions.

A table with the information for part number, pipe size and A/Joint sizes is provided.

All fittings dimensions are for reference only.

4" - 24" Fabricated Cross Tees (HDPE Dual Wall Fabricated Tees Fittings)
