This document is the 12” AdvanEdge Fabricated Cross Wye (AdvanEdge Fittings). Diagram with table provided.

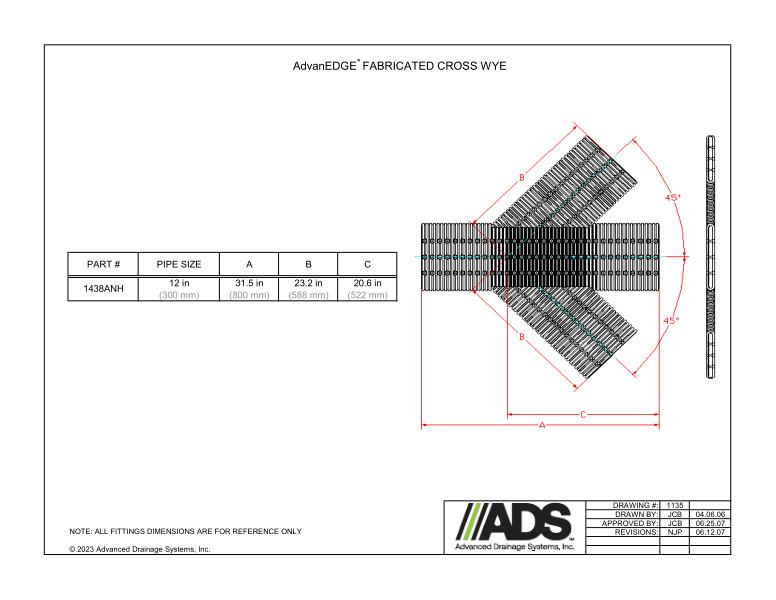

The AdvanEDGE Fabricated Cross WYE diagram shows the A/B/C dimensions with a 45 degree arc.

The table provides the values for Part number, pipe size and A/B/C dimensions.

All fittings dimensions are for reference only.
