This document is the HDPE Dual Wall Couplers - “A” Profile ST Split Coupler 6”-60” Diameter. Illustrations, notes and reference chart is shown.

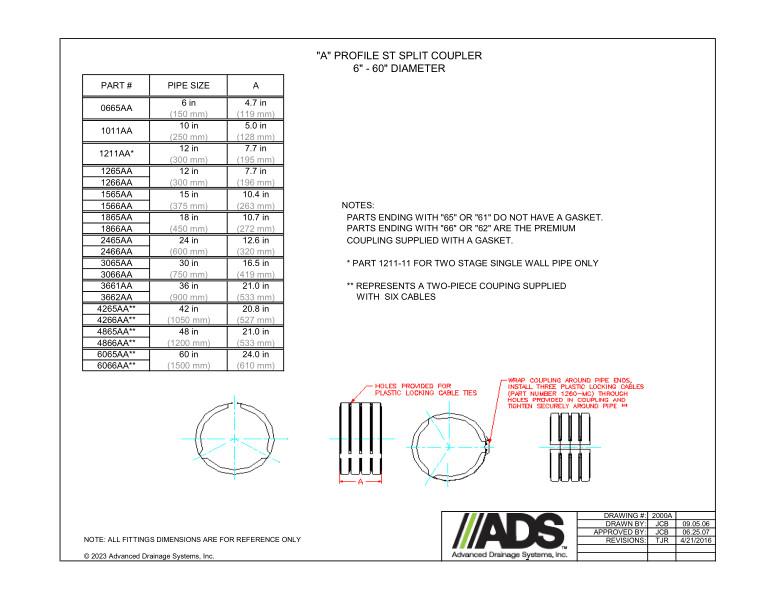

The “A” Profile ST Split Coupler 6”-60” diameter illustrations shows the holes provided for plastic locking cable ties. A top view is shown with end view directing to wrap end cap around pipe ends, install 2 plastic locking cables through holes provided in end cap and tighten securely around pipe. A table with part number, pipe size and A dimensions is provided.

All fittings dimensions are for reference only.
