This document is the HDPE Dual Wall Couplers - Double Wide ST Coupler 10”-36” diameter. Illustrations and reference chart is shown.

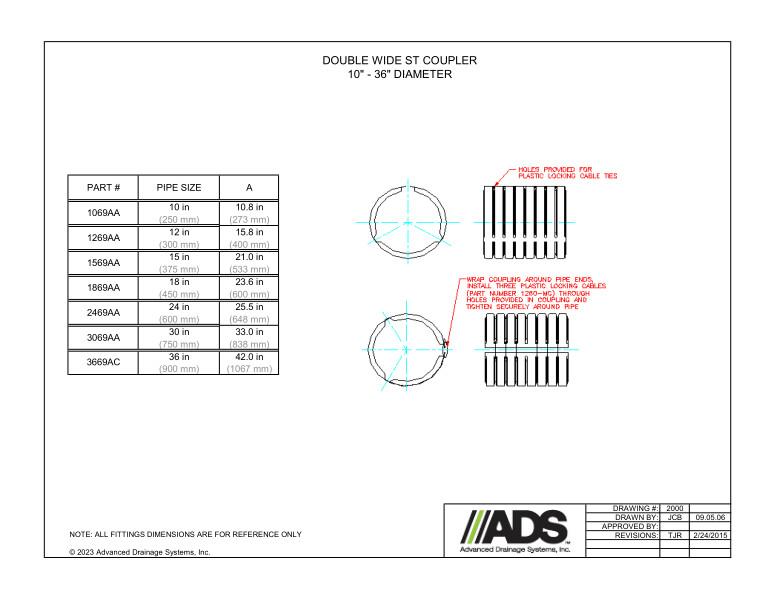

The Double Wide ST Coupler 10”-36” diameter illustrations shows the holes provided for plastic locking cable ties. A top view is shown with end view directing to wrap end cap around pipe ends, install 2 plastic locking cables through holes provided in end cap and tighten securely around pipe. A table with part number, pipe size and A dimensions is provided.

All fittings dimensions are for reference only.
