Snap Tee - HDPE Singlewall Fittings

Filename:
Snap Tee - HDPE Singlewall Fittings.pdf

Download Document (pdf) View in Browser
Snap Tee - HDPE Singlewall Fittings

This document is the Snap Tee - HDPE Singlewall Fittings. A detail with A/B/C/D dimensions, chart and note provided.

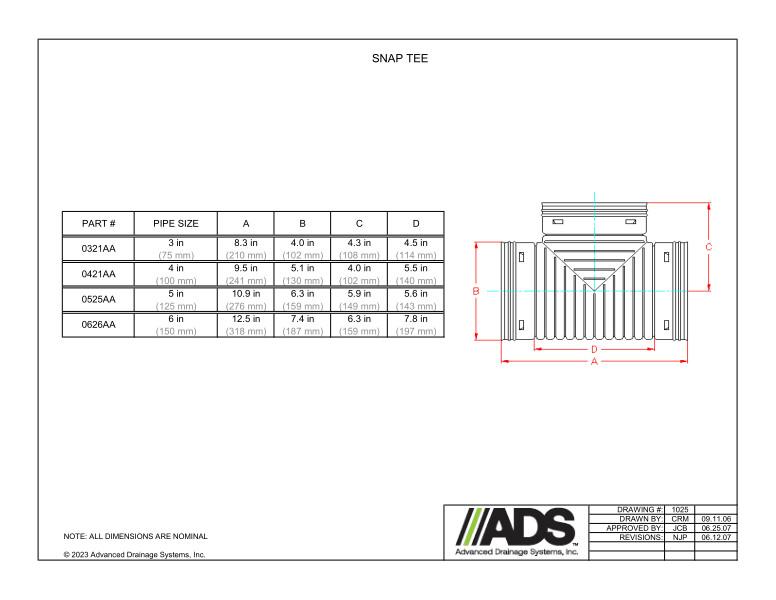

The detail shows the snap Tee with A/B/C/D dimensions.

A table with part number, pipe size and A/B/C/D dimensions provided.

A note states that all dimensions are nominal.

Snap Tee - HDPE Singlewall Fittings
