6" N-12 Dual Wall Stop Coupling Nyloplast Detail
Filename:
6" N-12 Dual Wall Stop Coupling Nyloplast Detail.pdf
![6" N-12 Dual Wall Stop Coupling Nyloplast Detail](https://assets.adspipe.com/m/4bce02548aedb7b0/webimage-6-N-12-Dual-Wall-Stop-Coupling-Nyloplast-Detail.jpg)

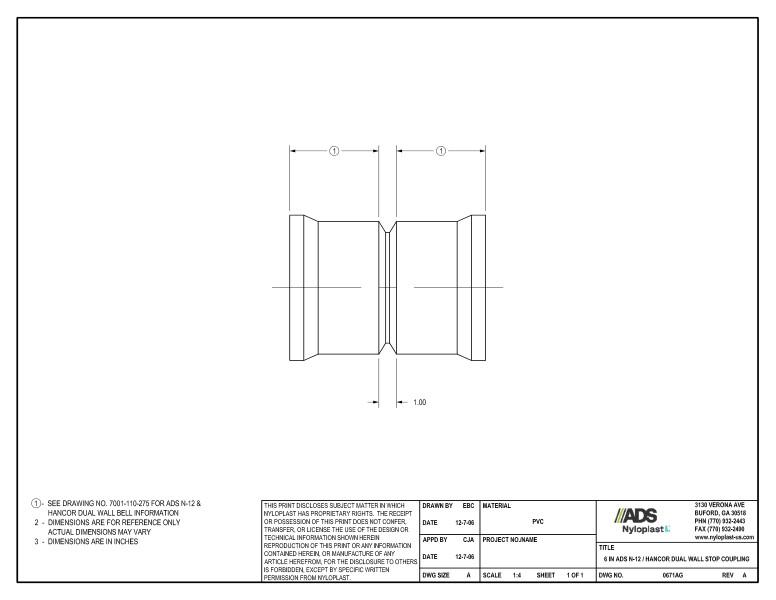

This document is the 6” N-12 Dual Wall Stop Coupling Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
