12" AdvanEdge Fabricated Horizontal Tee (AdvanEdge Fittings)

This document is the 12” AdvanEdge Fabricated Horizontal Tee (AdvanEdge Fittings). Diagrams with table provided.

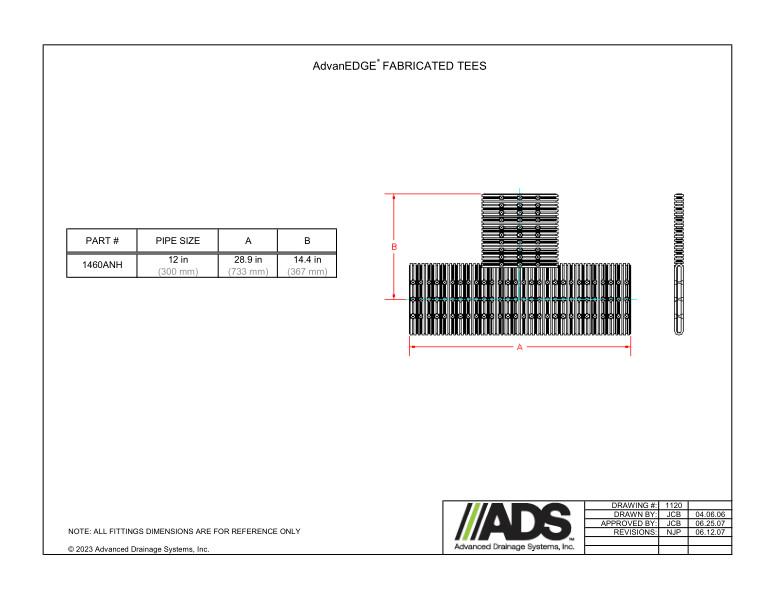

The AdvanEDGE Fabricated Tees diagrams shows the A and B details. A side view diagram is included.

The table provides the values for Part number, pipe size and A/B dimensions.

All fittings dimensions are for reference only.

12" AdvanEdge Fabricated Horizontal Tee (AdvanEdge Fittings)
