This document is the HP Storm Miscellaneous Fittings Manual. Tables with pipe size and diagrams of products with descriptions included.

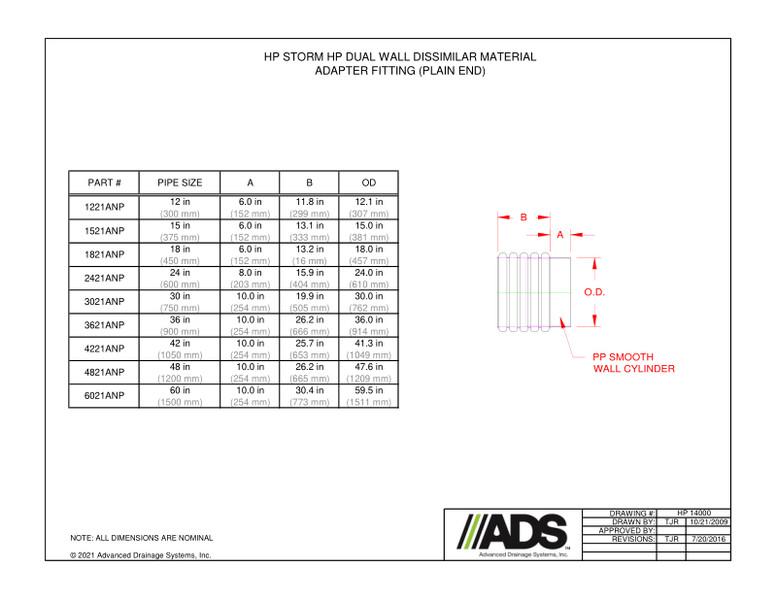

The information for the HP Storm HP Dual Wall Dissimilar Material Adapter Fitting (Plain End) is shown with a chart that lists the values for Part number, pipe size, A/B and OD. Diagram shows the PP smooth wall cylinder.

The HP Storm Dual Wall To RCP Manhole Adapter Fitting (Bell End) is shown with a chart that lists the values for Part number, pipe size, A/B and OD. Diagram shows the PP smooth wall cylinder. A note states that a series 65 gasket is required in field to make WT connection.

The HP Storm Dual Wall 12”-60” Joint Pusher is shown with a chart that lists the values for Part number and pipe size. Diagram shows the 7 corrugations IB Spigot end, no gasket. A note states that a series 65 gasket is required in field to make WT connection.

The HP Storm Dual Wall Fabricated End Caps 12”-60” (Plain End) is shown with a chart that lists the values for Part number, pipe size and A. Diagram shown.

The HP Storm Dual Wall Fabricated End Caps 12”-24” (Bell End) is shown with a chart that lists the values for Part number, pipe size and A. Diagram with gasket included shown.

The HP Storm Dual Wall Fabricated End Caps 30”-60” (IB Bell) is shown with a chart that lists the values for Part number, pipe size, A and Joint. Diagram shown.

The HP Storm Dual Wall Fabricated End Caps 30”-60” (IB Spigot) is shown with a chart that lists the values for Part number, pipe size, A and Joint. Diagram WT includes 2 gaskets is shown.
