15" Solid Locking Cover Assembly Nyloplast Detail
Filename:
15" Solid Locking Cover Assembly Nyloplast Detail.dwg
![15" Solid Locking Cover Assembly Nyloplast Detail](https://assets.adspipe.com/m/4899c503a54eff1b/webimage-15-Solid-Locking-Cover-Assembly-Nyloplast-Detail.jpg)
This document is the 15" Solid Locking Cover Assembly Nyloplast Detail. It shows illustrations with descriptions.

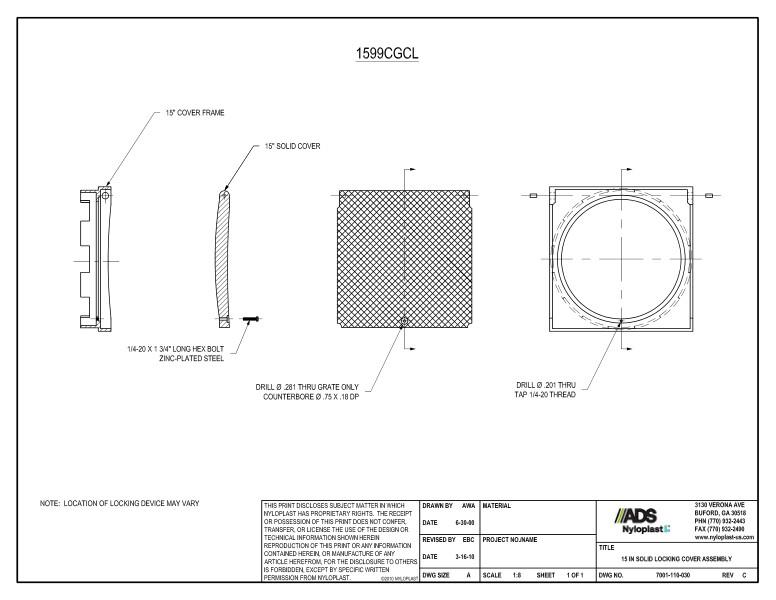

The side view illustrations show the 15” cover frame & 15” solid cover with ¼-20 x 1 ¾” long hex bolt zinc-plated steel. The top down view shows the solid cover with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
