1410A Duraslot Coupler Band

Filename:
1410A Duraslot Coupler Band.dwg

1410A Duraslot Coupler Band

This document shows the 1410A Duraslot Coupler Band. Details of the Duraslot coupler with dimensions and dimension tables provided.

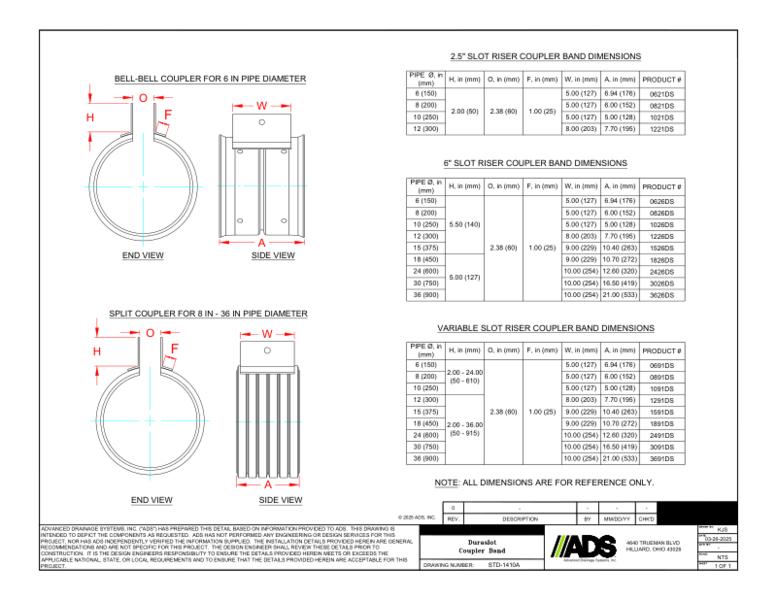

The top detail shows the end view/side view of the ST cleated coupler for 4” pipe diameter. The 2nd detail shows the end view/side view of the Bell-Bell coupler for for 6” pipe diameter. The 3rd detail shows the end view/side view of the split coupler for 8”-36” pipe diameter.

The 2.5” slot riser coupler band dimension table shows pipe in mm, various height and length dimensions for H/O/F/W/A/B and the product number.

The 6” slot riser coupler band dimension table shows pipe in mm, various height and length dimensions for H/O/F/W/A/B and the product number.

The variable slot riser coupler band dimension table shows pipe in mm, various height and length dimensions for H/O/F/W/A/B and the product number.
