12" - 36" Fabricated Soil Tight Plain End Triple Manifold (HDPE Dual Wall Fabricated Manifolds Fittings)
Filename:
12" - 36" Fabricated Soil Tight Plain End Triple Manifold (HDPE Dual Wall Fabricated Manifolds Fittings).pdf
This document is the 12" - 36" Fabricated Soil Tight Plain End Triple Manifold (HDPE Dual Wall Fabricated Manifolds Fittings). A diagram with table provided.

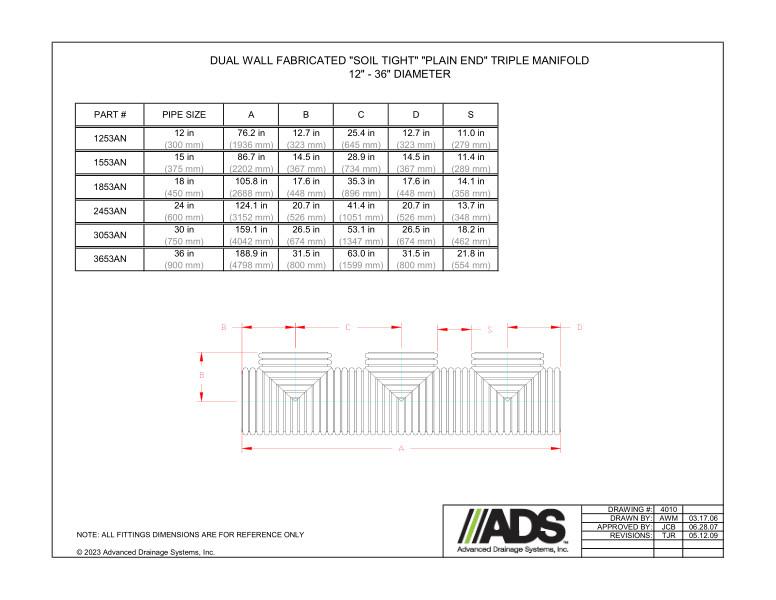

The dual wall Fabricated “Soil Tight” “Plain End” Triple Manifold 12" - 36" diameter is shown in a diagram that shows A/B/C/D/S dimensions.
A table with the information for part number, pipe size and A/B/C/D/S sizes is provided.
All fittings dimensions are for reference only.
