12", 18" & 24" Fabric Pin Geosynthetic Specification

Filename:
12", 18" & 24" Fabric Pin Geosynthetic Specification.pdf

Download Document (pdf) View in Browser
12", 18" & 24" Fabric Pin Geosynthetic Specification

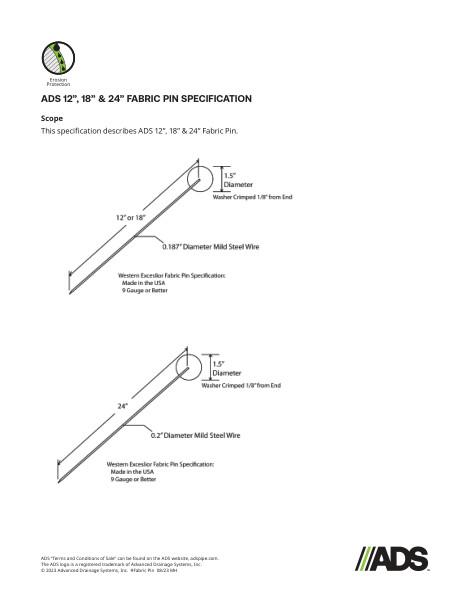

This document is the Geo Spec Fabric Pin. ADS 12”, 18” & 24” Fabric Pin specification with 2 figures shown.

The first figure shows the 12” or 18” pin with diameter mild steel wire, washer crimped 1/8” from end, 1.5” diameter depth and made in the USA, 9 gauge or better.

The second figure shows the 24” pin with diameter mild steel wire, washer crimped 1/8” from end, 1.5” diameter depth and made in the USA, 9 gauge or better.

12", 18" & 24" Fabric Pin Geosynthetic Specification
