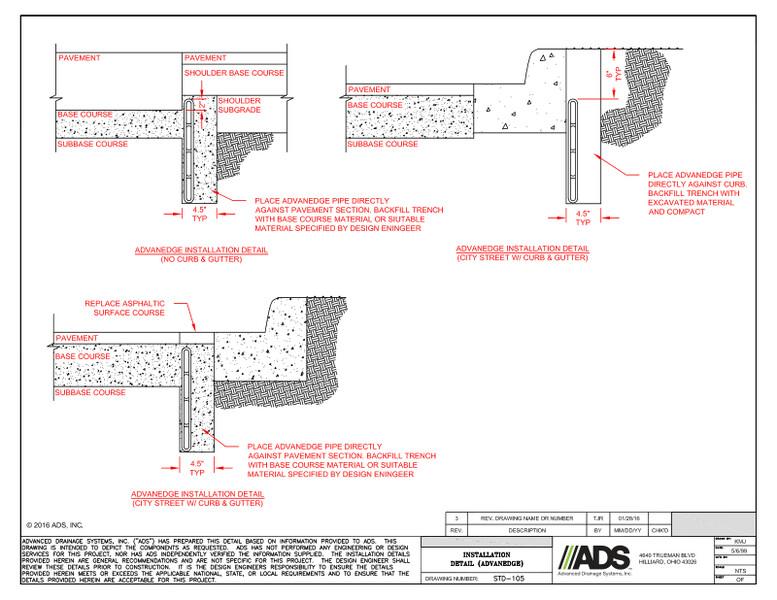

This document is the Installation Detail (AdvenEdge). Diagrams for city street with curbs and gutters and no curb or gutter installation with descriptions shown.

The first AdvenEdge Installation Detail with no curb or gutter shows the pavement, shoulder base course, shoulder subgrade, base course, subbase course, 4.5” TYP and to place AdvenEdge pipe directly against pavement section. Backfill trench with base course material or suitable material specified by design engineer.

The second AdvenEdge Installation Detail for city street with curb or gutter shows the pavement, base course, subbase course, 4.5” TYP and to place AdvenEdge pipe directly against curb. Backfill trench with excavated material and compact.

The third AdvenEdge Installation Detail for city street with curb or gutter shows the pavement, replace asphaltic surface course, base course, subbase course, 4.5” TYP and to place AdvenEdge pipe directly against pavement section. Backfill trench with base course material or suitable material specified by design engineer.
