DC-780 10" (250 mm) StormTech Inspection Port Detail.

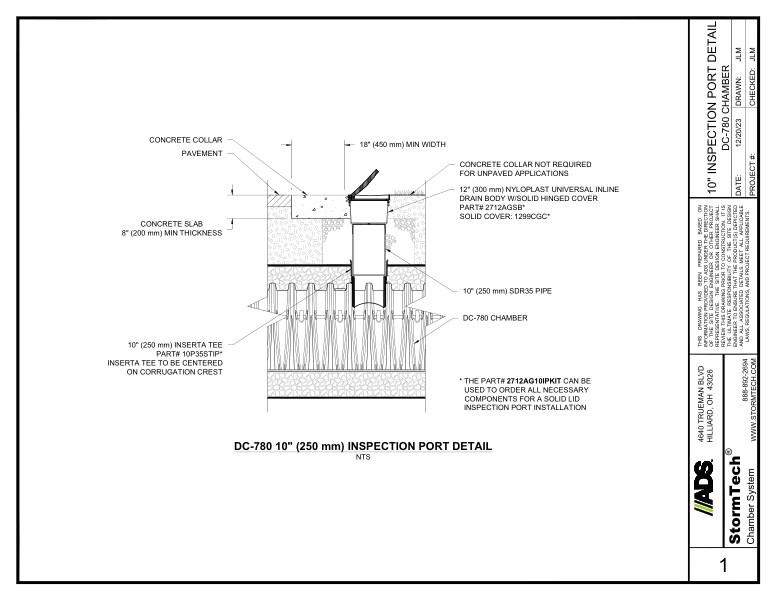

This document is the DC-780 10" (250 mm) StormTech Inspection Port Detail. A cross section of the inspection port detail is shown.

The cross section of the MC-780 Inspection port shows 18” minimum width, the concrete collar, pavement, concrete slab, 12” nyloplast inline drain body with solid hinged cover, 10” SDR 35 pipe and the 10” inserta TEE which is to be centered on the corrugation crest. The DC-780 chamber is positioned underneath.
