12" AdvanEdge Fabricated Horizontal Wye (AdvanEdge Fittings)

Filename:
12" AdvanEdge Fabricated Horizontal Wye (AdvanEdge Fittings).pdf

12" AdvanEdge Fabricated Horizontal Wye (AdvanEdge Fittings)

This document is the 12” AdvanEdge Fabricated Horizontal Wye (AdvanEdge Fittings). Diagram with table provided.

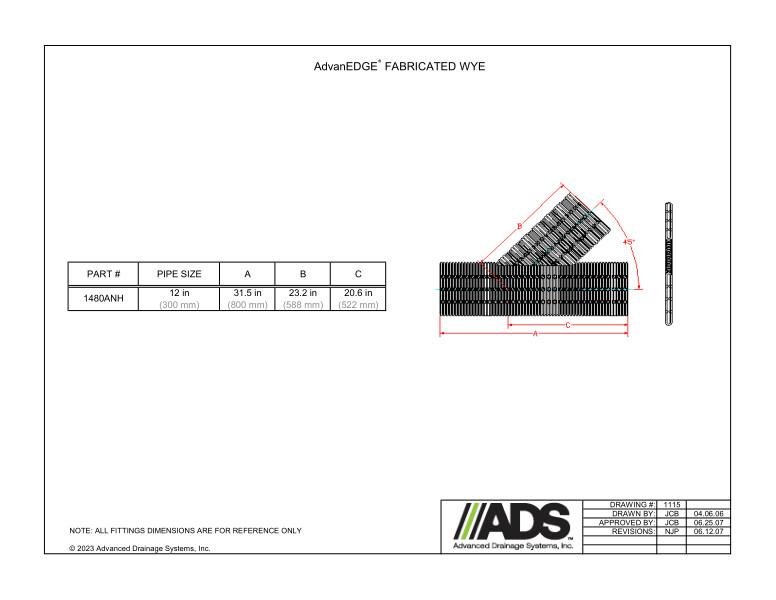

The AdvanEDGE Fabricated WYE diagram shows the A/B/C dimensions with a 45 degree arc.

The table provides the values for Part number, pipe size and A/B/C dimensions.

All fittings dimensions are for reference only.
