Saddle Gasket Product Sheet

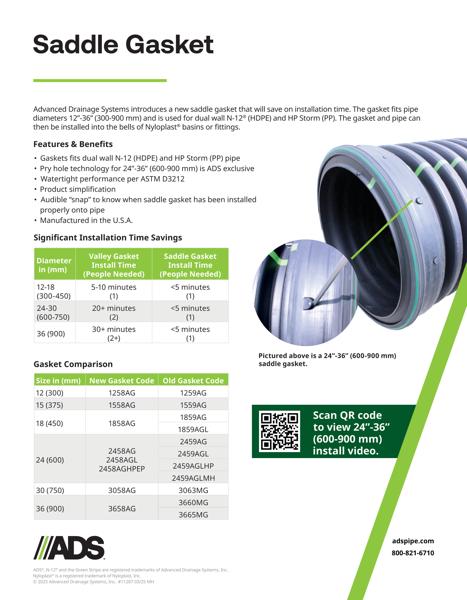

This document is the Saddle Gasket Product Sheet. Description, features, benefits, time saving chart and gasket comparison provided. Gasket detail shown.

Advanced Drainage Systems introduces a new saddle gasket that will save on installation time. The gasket fits pipe diameters 12”-36” (300-900 mm) and is used for dual wall N-12® (HDPE) and HP Storm (PP). The gasket and pipe can then be installed into the bells of Nyloplast basins or fittings.

Features and benefits include Gaskets fits dual wall N-12 (HDPE) and HP Storm (PP) pipe. Pry hole technology for 24”-36” (600-900 mm) is ADS exclusive. Watertight performance per ASTM D3212. Product simplification. Audible “snap” to know when saddle gasket has been installed properly onto pipe. Manufactured in the U.S.A.

A significant installation time savings charts shows for each diameter of pipe, a comparison between valley gasket install time verses saddle gasket install time.

A gasket comparison chart shows the new gasket code verses the old gasket code for various pipe sizes.

A Saddle Gasket detail is shown with QR code for installation video.
