HDPE Dual Wall Fabricated Reducers Fittings Manual
Filename:
HDPE Dual Wall Fabricated Reducers Fittings Manual.pdf
![HDPE Dual Wall Fabricated Reducers Fittings Manual](https://assets.adspipe.com/m/14582710b425cb8c/webimage-HDPE-Dual-Wall-Fabricated-Reducers-Fittings-Manual.jpg)

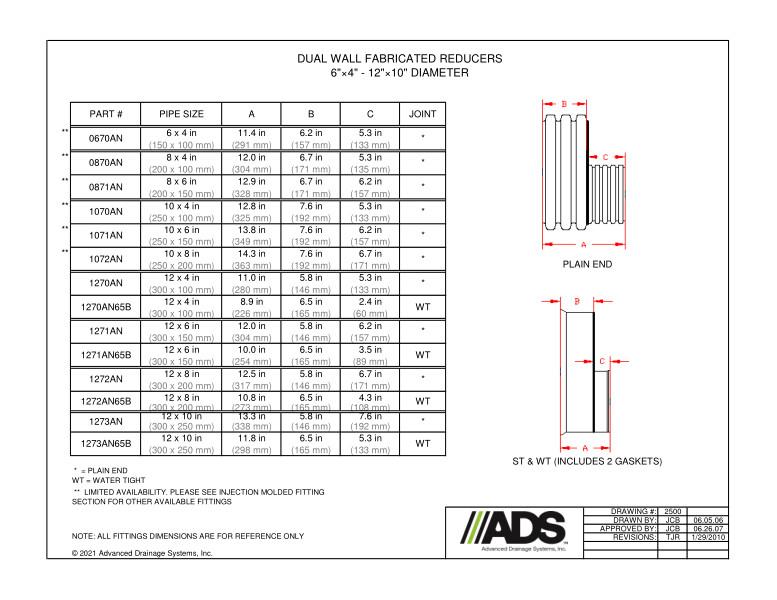

This document is the HDPE Dual Wall Fabricated Reducers Fittings Manual. Reducer illustrations, notes and table provided.
The illustrations of the dual wall fabricated reducers 6”x 4”-12” x10” diameter shows the plain end and ST & WT (includes 2 gaskets) of the reducers.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings are for reference only.
