202A Connection Soil-Tight MH Nyloplast Adapt 12-24in HDPE Detail

Filename:
202A Connection Soil-Tight MH Nyloplast Adapt 12-24in HDPE Detail.pdf

Download Document (pdf) View in Browser
202A Connection Soil-Tight MH Nyloplast Adapt 12-24in HDPE Detail

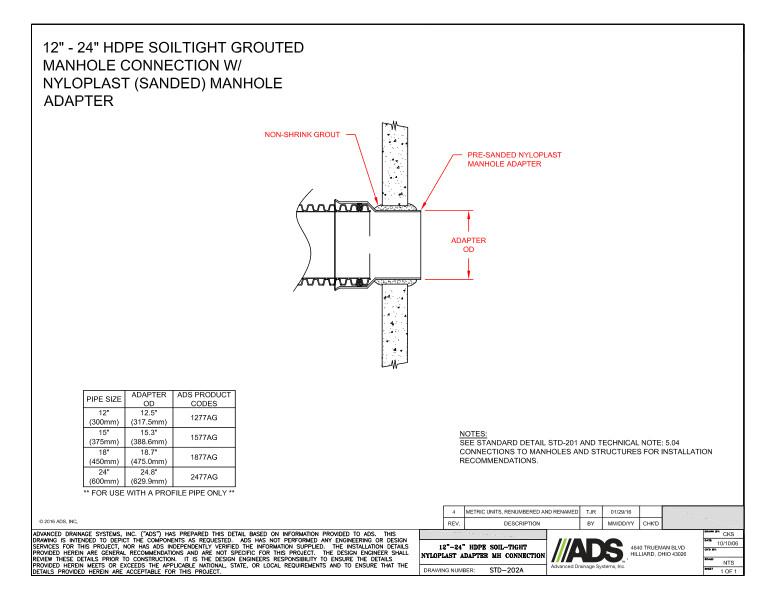

This document is the 202A Connection Soil-Tight MH Nyloplast Adapt 12-24in HDPE Detail. It shows the unit with descriptors and pipe/adaptor chart.

The adapter detail shows the non-shrink grout, pre-sanded nyloplast manhole adapter and adapter OD.

A chart defining pipe size with adapter OD and ADS product codes is included.

Notes recommend seeing installation recommendations for connections to manholes and structures.

202A Connection Soil-Tight MH Nyloplast Adapt 12-24in HDPE Detail
