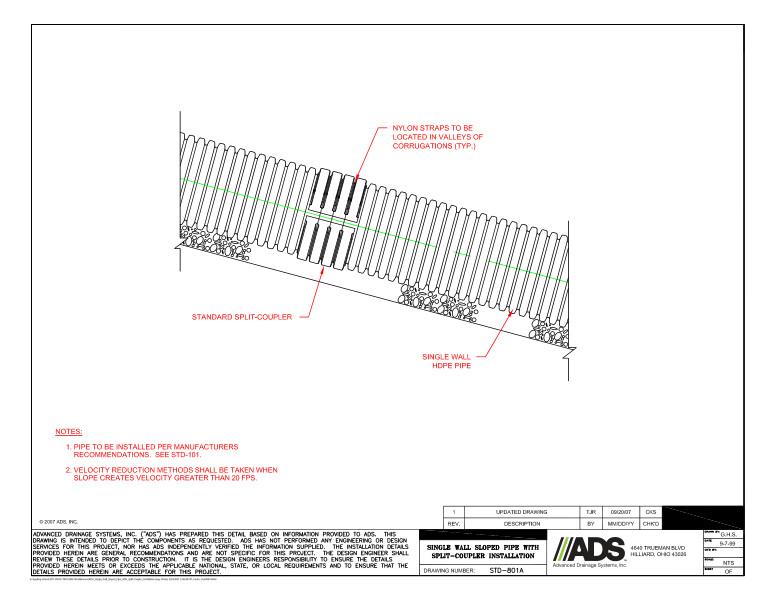

This document is the 801A Single Wall Sloped Pipe With Split-Coupler Installation Detail. It shows the pipe detail with descriptions and notes.

This side view detail shows the nylon straps to be located in valleys of corrugations, standard split coupler and the single wall HDPE pipe.

Notes state that pipe to be installed per manufacturers recommendation and velocity reduction methods shall be taken when slope creates velocity grater than 20 FPS.
