1003 Roof Drain (45 Deg Wye Cleanout and Fitting) Detail
1003 Roof Drain (45 Deg Wye Cleanout and Fitting) Detail.dwg
This document is the 1003 Roof Drain (45 degree Wye Cleanout and Fitting) Detail. Descriptions and notes explain the roof drain.

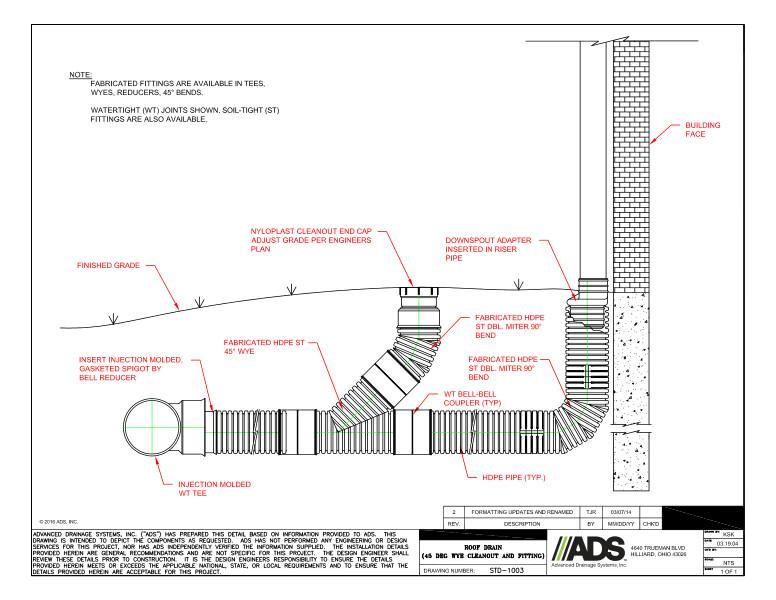

The Roof Drain (45 degree Wye Cleanout and Fitting) Detail shows the building face, downspout adapter inserted in riser pipe, nyloplast cleanout end cap adjust grad per plans, finished grade, injection molded WT Tee, insert injection molded, gasketed spigot by bell reducer, fabricated HDPE ST 45 degree wye, WT bell-bell coupler (TYP), fabricated HDPE ST DBL. miter 90 degree bend and HDPE pipe (TYP).
Notes state that fabricated fittings are available in Tees, wyes, reducers, 45 degree bends and bell/bell couplers. Watertight (WT) joints are in the detail, soil-tight fittings are also available.
