This document is the Inline Drain with Ductile Iron Base Plate, Frame & Grate Provided by Others Nyloplast Detail. Illustrations with charts and descriptions shown.

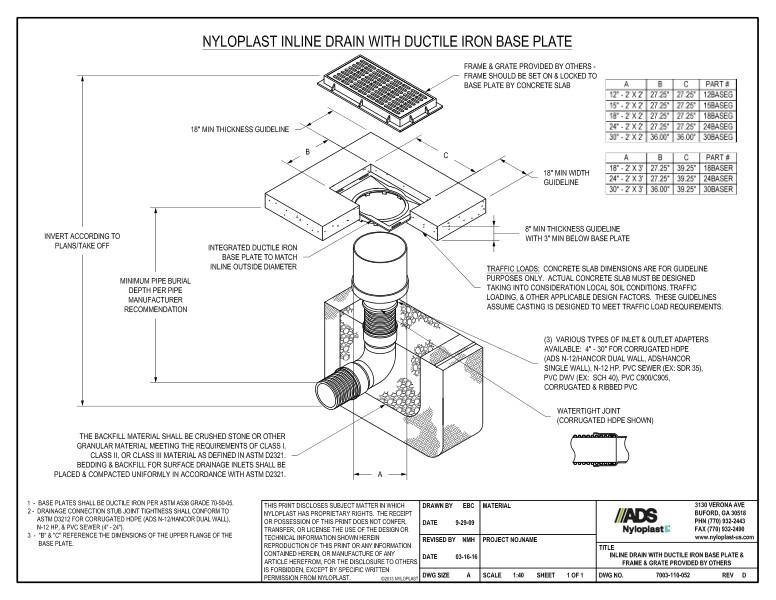

The nyloplast Inline Drain with Ductile Iron Base Plate shows the frame & grate provided by others, integrated ductile iron base plate to match inline outside diameter, 18” minimum width guideline, 18” and 8” minimum thickness guidelines, invert heights, minimum pump burial depth, backfill material shall be crushed stone or other granular material, traffic loads, water tight joint and various types of inlet/outlet adapters.

A chart is provided with A, B and C dimensions with corresponding part numbers.

Notes state base plates shall be ductile iron. Drainage connection stub joint tightness shall conform to ASTM D3212 and B & C reference the dimensions of the upper flange of the base plate.
