12" AdvanEdge Snap End Cap (AdvanEdge Fittings)

12" AdvanEdge Snap End Cap (AdvanEdge Fittings).pdf

12" AdvanEdge Snap End Cap (AdvanEdge Fittings)

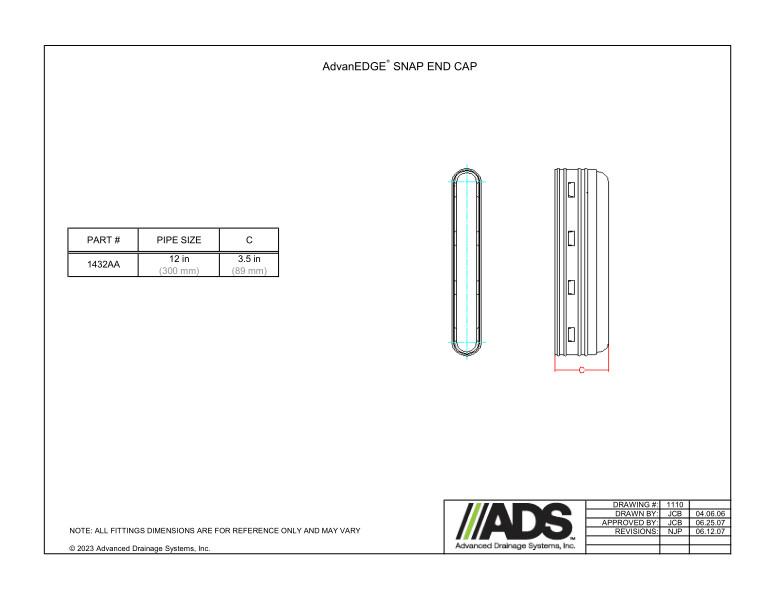

This document is the 12” AdvanEdge Snap End Cap (AdvanEdge Fittings). 2 details shown with a dimension table.

The AdvanEDGE Snap End Cap are shown 2 ways. The first detail shows the snap end cap. The second detail shows the C dimension.

A table is provided with the information for part number, pipe size and C dimension.

All fittings dimensions are for reference only.
