This document is the 207D 12-30 HP Storm Booted (Cored or Cast Hole) Structure Connection with Sleeve or PVC Adapter Detail. Details and charts provided.

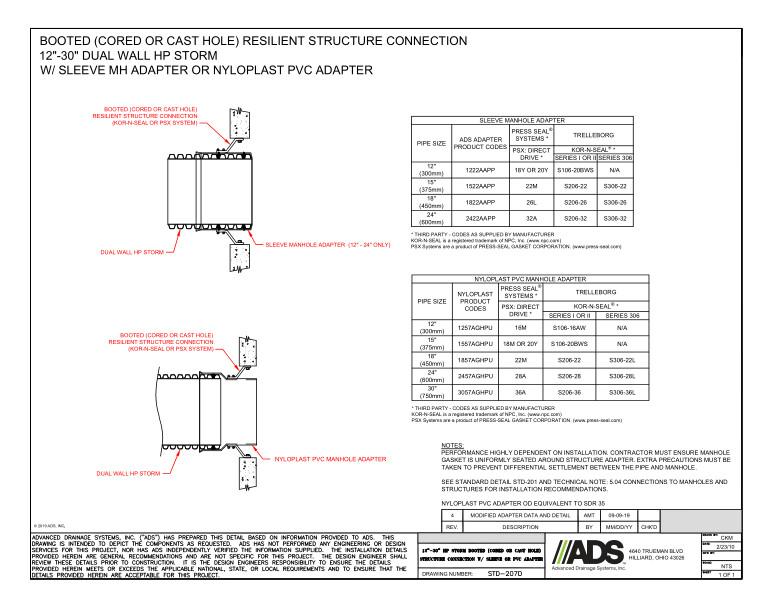

The first detail shows the Booted (Cored or Cast Hole) resilient structure connection, Dual Wall HP Storm and the sleeve manhole adapter.

The second detail shows the Booted (Cored or Cast Hole) resilient structure connection, Dual Wall HP Storm and the Nyloplast PVC manhole adapter.

The chart features the Sleeve Manhole Adapter with values for pipe size, ADS Product Codes and Press Seal Systems/PSX: Direct Drive. The Trelleborg column shows the KOR-N-Seal with Series I or II and Series 306.

A second chart features the Nyloplast PVC Manhole Adapter with values for pipe size, Nyloplast Product Codes and Press Seal Systems/PSX: Direct Drive. The Trelleborg column shows the KOR-N-Seal with Series I or II and Series 306.

Notes recommend performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter.
