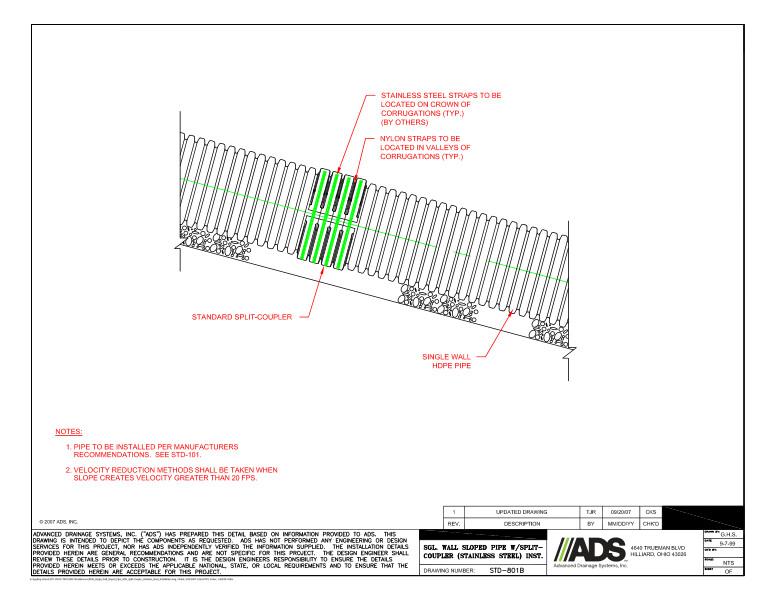

This document is the 801B Single Wall Sloped Pipe With Split-Coupler Stainless Steel Installation Detail. A diagram with descriptors and notes explain the system.

The 1st diagram shows the stainless steel straps located in the crown of corrugations, standard split coupler and single wall HDPE pipe.

Notes recommend that pipe to be installed per manufacturer. Velocity reduction methods shall be taken when slope creates velocity greater than 20 FPS.
