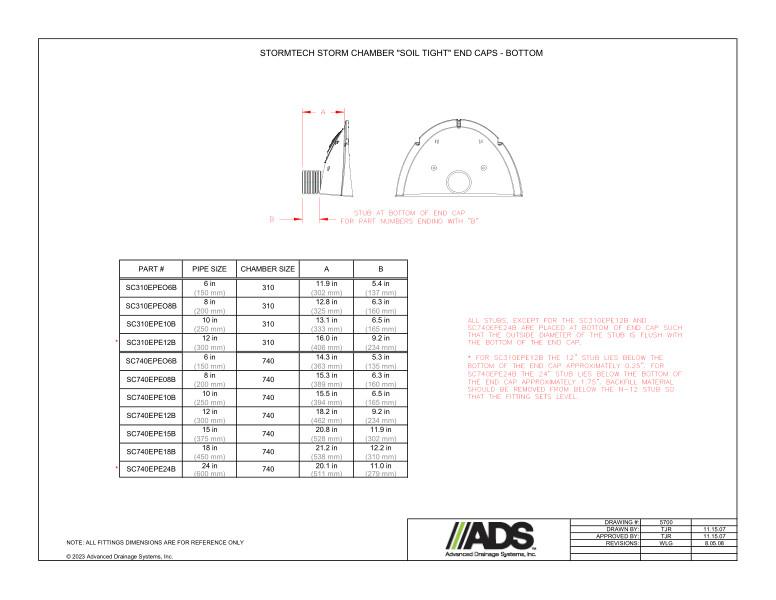

This document is the StormTech Storm Chamber Soil Tight End Cap - Bottom (StormTech Dual Wall HDPE Fittings). Diagrams, notes and table included.

StormTech Storm Chamber “Soil Tight” End Caps- Bottom shows the diagrams for the end caps with A/B dimensions and stub at bottom of end cap for part numbers ending in “B”.

The table lists the part number, pipe size, chamber size and A/B dimension values.

Notes state that all stubs, except for the SC310EPE12B and SC740EPE24B are placed at bottom of end cap so the outside diameter of the stub is flush with the bottom of the end cap. For SC310EPE12B the 12” stub lies below the bottom of the end cap approximately 0.25”. For SC740EPE24B the 24” stub lies below the bottom of the end cap approximately 1.75”. Backfill material should be removed from below the N-12 stub so the fitting sets level.

All fittings dimensions are for reference only.
