This document is the 3”- 10” Snap End Cap (HDPE Single Wall Fittings). A detail with table provided.

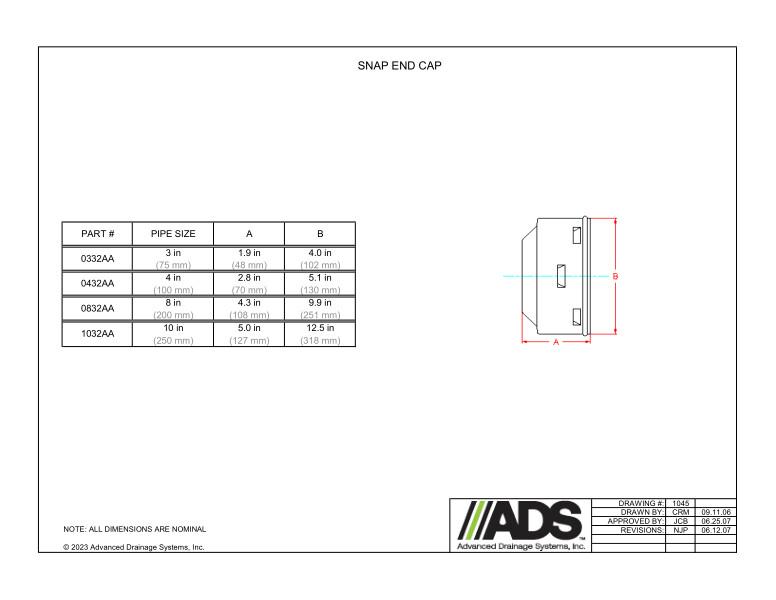

The snap end cap detail shows the A/B dimensions.

A table with part number, pipe size and A/B dimensions is provided.

All dimensions are nominal.
