4" - 18" Diameter Dual Wall Fabricated Standard WYES (HDPE WYES Fittings)
Filename:
4" - 18" Diameter Dual Wall Fabricated Standard WYES (HDPE WYES Fittings).pdf
![4" - 18" Diameter Dual Wall Fabricated Standard WYES (HDPE WYES Fittings)](https://assets.adspipe.com/m/727de0d77f75a9a7/webimage-4-18-Diameter-Dual-Wall-Fabricated-Standard-WYES-HDPE-WYES-Fittings.jpg)
This document is the 4”-18” Diameter Dual Wall Fabricated Standard Wyes (HDPE Wyes Fittings). Plain end & watertight Wye diagrams and table provided.

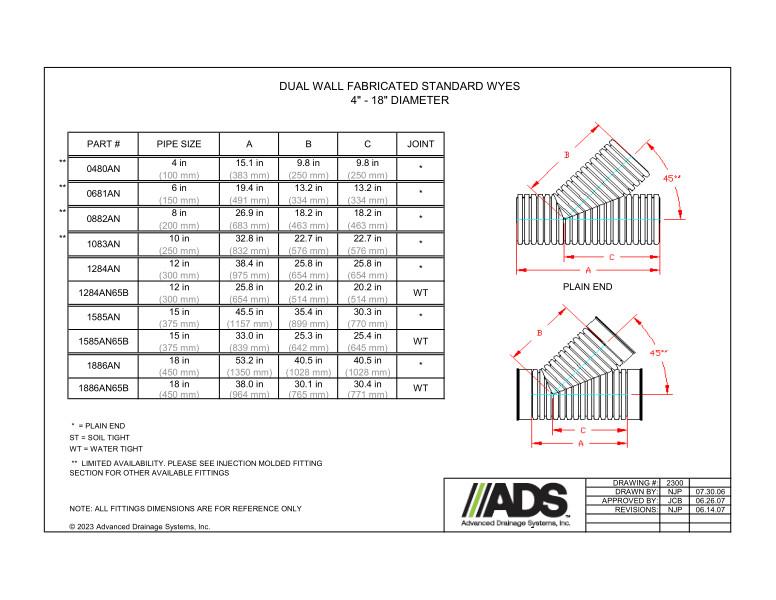

The illustrations of the plain end Wyes shows the 45 degree angle and A/B/C dimensions. The WT (includes 3 gaskets) Wyes shows the 45 degree angle and A/B/C dimensions.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
