4" - 60" Welded Manifold End Plate Soil Tight/Water Tight Connection (HDPE Dual Wall Fabricated Manifolds Fittings)
Filename:
4" - 60" Welded Manifold End Plate Soil Tight/Water Tight Connection (HDPE Dual Wall Fabricated Manifolds Fittings).pdf
![4" - 60" Welded Manifold End Plate Soil Tight/Water Tight Connection (HDPE Dual Wall Fabricated Manifolds Fittings)](https://assets.adspipe.com/m/60e3ddd04e8023af/webimage-4-60-Welded-Manifold-End-Plate-Soil-Tight-Water-Tight-Connection-HDPE-Dual-Wall-Fabricated-Manifolds-Fittings.jpg)

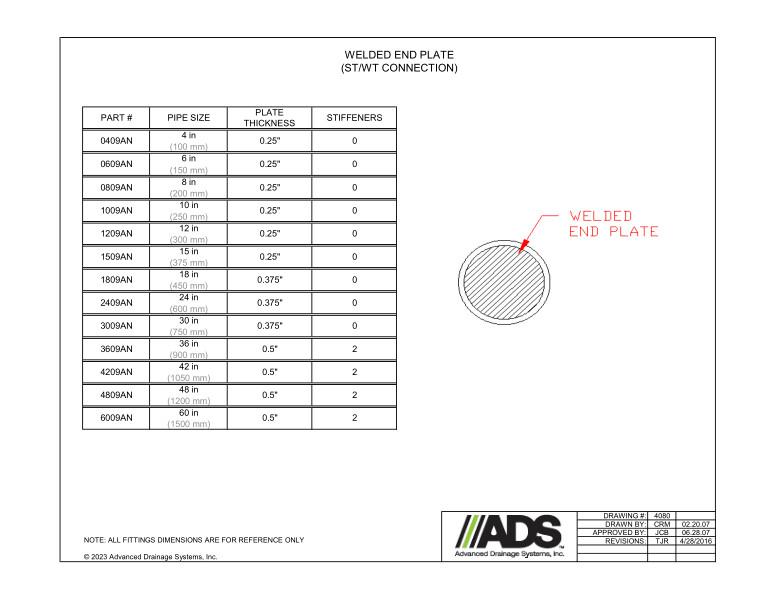

This document is the 4”-60” Welded Manifold End Plate Soil Tight/Water Tight Connection (HDPE Dual Wall Fabricated Manifolds Fittings). Welded end plate diagram and table provided.
The welded end plate (ST/WT Connection) is shown in a diagram.
A table with the information for part number, pipe size, plate thickness and stiffeners is provided.
All fittings dimensions are for reference only.
