205B 30-60 SaniTite HP Compression (Cast-in) Structure Connection Detail

Filename:
205B 30-60 SaniTite HP Compression (Cast-in) Structure Connection Detail.pdf

Download Document (pdf) View in Browser
205B 30-60 SaniTite HP Compression (Cast-in) Structure Connection Detail

This document is the 205B 30-60 SaniTite HP Compression (Cast-In) Structure Connection Detail. Diagram and chart provided.

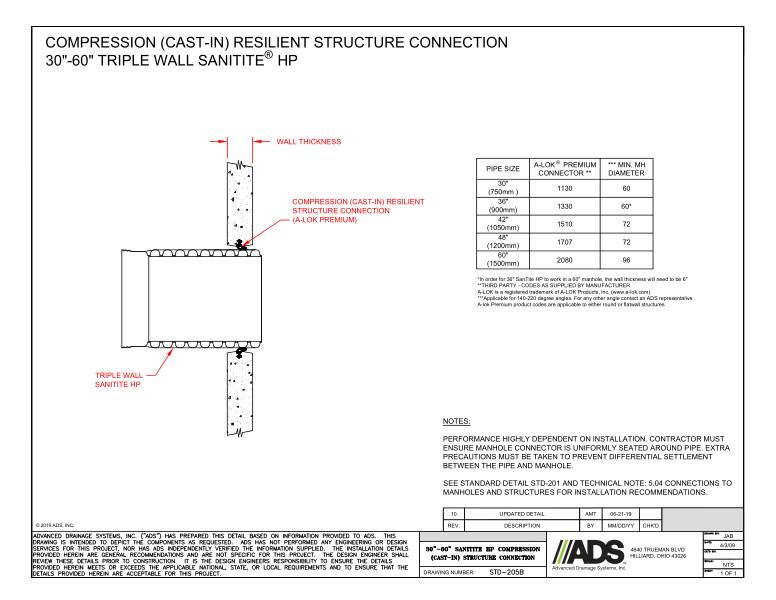

The diagram shows the wall thickness, Compression (Cast-In) Resilient Structure Connection (A-LOK, Premium) and triple wall SaniTite HP.

A chart provides values for pipe size, A-LOK Premium Connector and minimum MH diameter.

Notes state that performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter. Take precautions to prevent differential settlement between the pipe and manhole.
