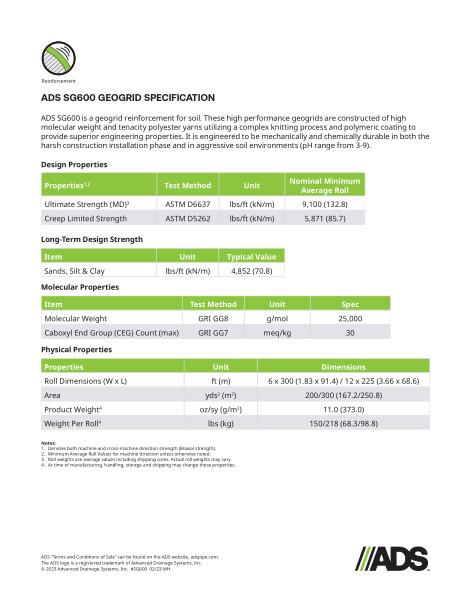

SG600 Geogrid Geosynthetic Specification
SG600 Geogrid Geosynthetic Specification.pdf
This document is the SG600 Geogrid Specification. Design properties, strength, molecular and physical property values listed.
ADS SG600 is a geogrid reinforcement for soil. These high performance geogrids are constructed of high molecular weight and tenacity polyester yarns utilizing a complex knitting process and polymeric coating to provide superior engineering properties. It is engineered to be mechanically and chemically durable in both the harsh construction installation phase and in aggressive soil environments (pH range from 3-9).
The design properties chart lists values for ultimate strength and creep limit strength.
The long-term design strength chart lists sand, silt and clay values.
The molecular properties chart lists values for molecular weight and carboxyl end group count.
The physical properties chart lists dimensions for rolls, area, product weight and weight per roll.
Notes denotes both machine and cross-machine direction strength (Biaxial strength).
Minimum Average Roll Values for machine direction unless otherwise noted. Roll weights are average values including shipping cores. Actual roll weights may vary.
At time of manufacturing, handling, storage and shipping may change these properties.
