1451 Duraslot XL Standard Grate

1451 Duraslot XL Standard Grate.dwg

1451 Duraslot XL Standard Grate

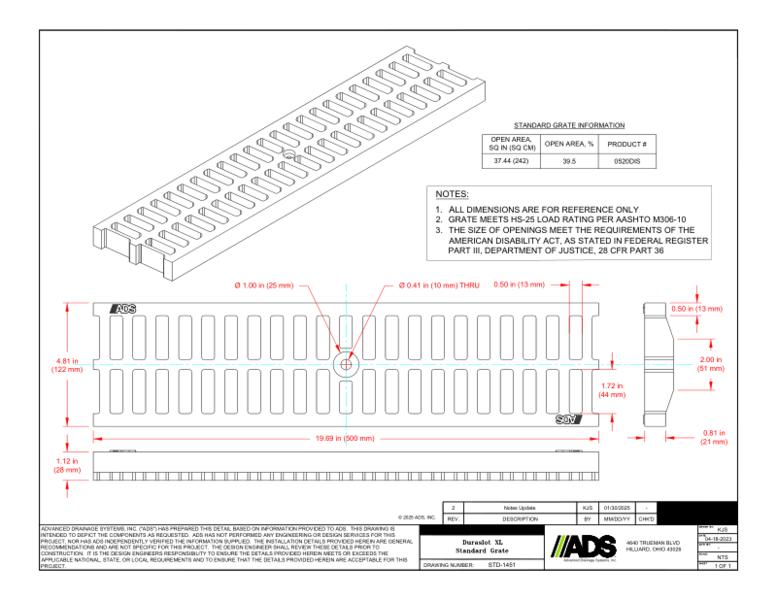

This document shows the 1451 Duraslot XL Standard Grate. Details of the Duraslot standard grate with dimensions and information table provided.

The top detail shows the Duraslot standard grate. The grate detail shows the various height and length dimensions for the grate and connection.

A chart has the standard grate information for open area in square inches, open area percentage and product number.
