1401B Duraslot XL Pipe Custom Slot Height
1401B Duraslot XL Pipe Custom Slot Height.pdf

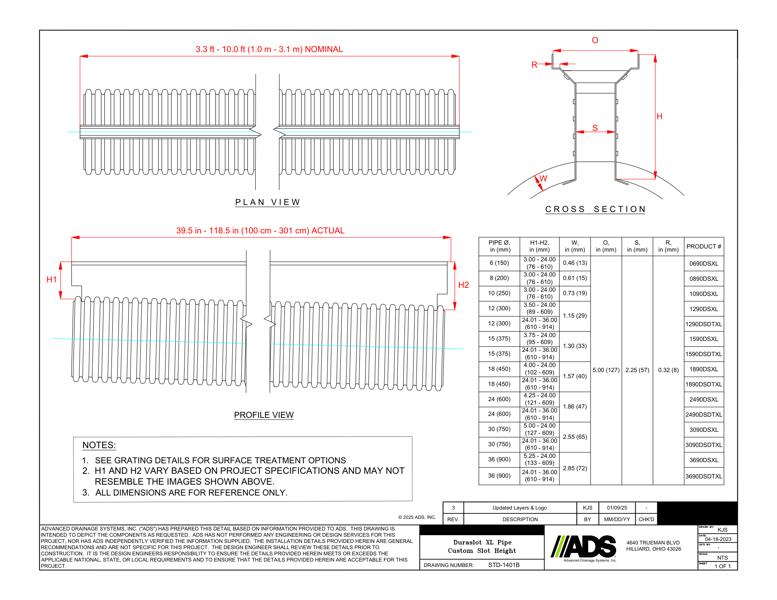

This document shows the 1401B Duraslot XL Pipe Custom Slot Height. Plan view, profile view and cross section details with dimension chart and notes provided.
The plan view detail shows the width diameter, the profile view shows the height diameter and the cross section shows the O/R/S/H/W dimensions.
A chart has the information for pipe inches from 6” to 36”, O/R/S/H/W dimensions and product number.
Notes recommend seeing grating details for surface treatment options and H1 & H2 vary based on project specifications and may not resemble the details.
