10"-60" "H" Profile ST Split Coupler (HDPE Dual Wall Couplers Fittings)

This document is the HDPE Dual Wall Couplers - “H” Profile ST Split Coupler 10”-60” diameter. Illustrations, note and reference chart is shown.

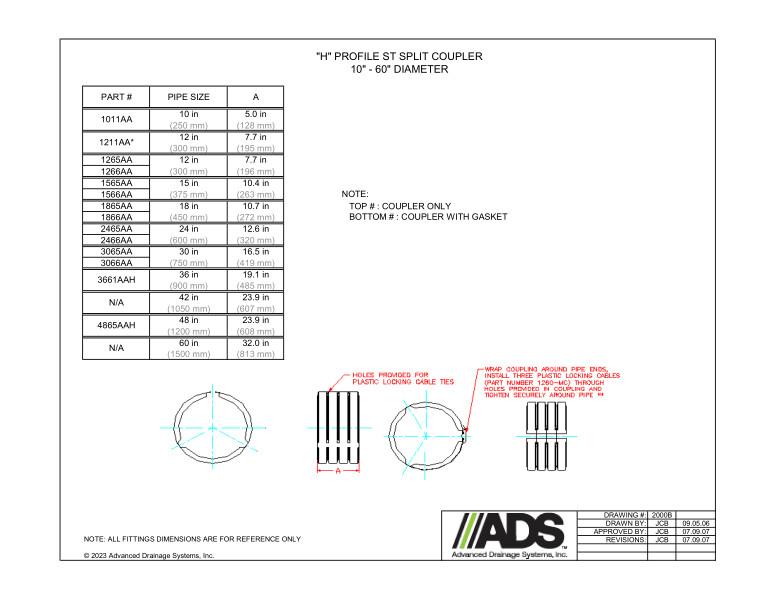

The “H” Profile ST Split Coupler 10”-60” diameter illustrations shows the holes provided for plastic locking cable ties. A top view is shown with end view directing to wrap end cap around pipe ends, install 2 plastic locking cables through holes provided in end cap and tighten securely around pipe. A table with part number, pipe size and A dimensions is provided.

Notes state that top # has coupler only, bottom # has a coupler with a gasket.

All fittings dimensions are for reference only.
